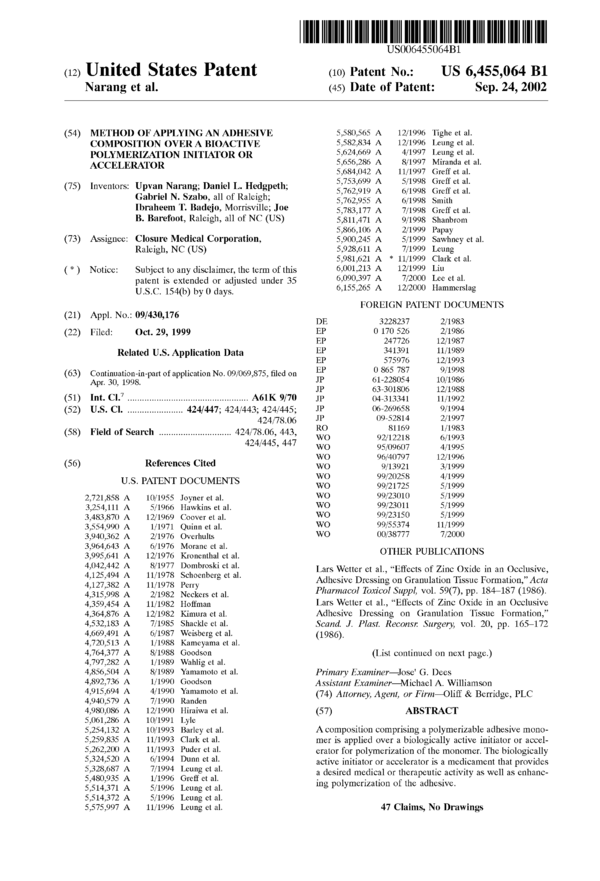

US006455064B1
(12) United States Patent (10) Patent No.: US 6,455,064 B1
Narang et al. (45) Date of Patent: Sep. 24, 2002
(54) METHOD OF APPLYING AN ADHESIVE 5,580,565 A 12/1996 Tighe et al.
COMPOSITION OVER A BIOACTIVE 5,582,834 A 12/ 1990 Leung 61 91
POLYMERIZATION INITIATOR OR 59624669 A 4/1997 Léung et 91
2922:7322: ,1/13:: ?,‘::1“:‘f:f
(75) Inventors: Upvan Narang; Daniel L. Hedgpeth; 2 gig : :1:
Gabriel N. Szabo, all of Raleigh; 5’762’955 A 6/1998 Smith
Ibraheem T. Badejo, MOITISVIHC; JOE 5:783:177 A 7/1998 Greff et al.
B. Barefoot, Raleigh, all of NC (US) 5,311,471 A 9/1993 shanbmm
5,866,106 A 2/1999 Papay
(73) Assignee: Closure Medical Corporation, 5,900,245 A 5/1999 Sawhney et al.
Raleigh, NC (US) 5,928,611 A 7/1999 Leung
5,981,621 A * 11/1999 Clark et al.
( * ) Notice: Subject to any disclaimer, the term of this 0,001,213 A 12/1999 1-111
patent is extended or adjusted under 35 2 E99 9191-1
U.S.C. 154(b) by 0 days. ’ ’ ammers ag
FOREIGN PATENT DOCUMENTS
(21) Appl. No.: 09/430,176
DE 3228237 2/1983
(22) Filed: Oct. 29, 1999 EP 0 170 526 2/1986
EP 247726 12/1987
Related U.S. Application Data
(63) Continuation-in-part of application No. 09/069,875, filed on EP 0 865 787 9/1998
Apr. 30 1998. JP 61—228054 10/1986
7 JP 63—301806 12/1988
(51) Int. Cl.7 ................................................ .. A61K 9/70 JP 04-313341 11/1992
(52) U.S. Cl. ..................... .. 424/447, 424/443, 424/445, JP 06-269658 9/1994
424/78.06 JP 09-52814 2/1997
(58) Field of Search ............................ .. 424/78.06, 443, 5% 92
424/445’ 447 WO 95/09607 4/1995
_ WO 96/40797 12/1996
References Clted W0 9/13921 3/1999
U.S. PATENT DOCUMENTS $8
2,721,858 A 10/1955 Joyner et al. W0 99/23010 5/1999
3,254,111 A 5/1966 Hawkins et al. W0 99/23011 5/1999
3,483,870 A 12/1969 Coover et al. W0 99/23150 5/1999
3,554,990 A 1/1971 Quinn et al. W0 99/55374 11/1999
3,940,362 A 2/1976 Overhults W0 00/38777 7/2000
3,964,643 A 6/1976 Morane et al.
3,995,641 A 12/1976 Kronenthal et al. OTHER PUBLICATIONS
4,042,442 A 8/1977 Dombroski et al. « - - - -
4,125,494 A 11/1978 Schoenberg et al. Lars Wetter et al., Effects of Zinc Oxide in an Occhisive,
4 127 382 A 11 Adhesive Dressing on Granulation Tissue Formation, Acta
’ ’ /1978 Perry Ph IT ' IS 1 1 59 7 184 187 1986
4,315,998 A 2/1982 Neckers et al. “"990 W90 “P172 ‘'0 ~ . ( )> PR . ‘ ( .)~
4,359,454 A 11/1932 Hoffman Lars Wetter et al., “Effects of Zinc Oxide in an Occlusive
4,364,876 A 12/1982 Kimura et al. Adhesive Dressing on Granulation Tissue Formation,”
4,532,183 A 7/1985 Shackle et al. Scand. J. Plast. Reconsr Surgery, vol. 20, pp. 165-172
4,669,491 A 6/1987 Weisberg et al. (1986).
4,720,513 A 1/1988 Kameyama et al.
4,764,377 A 8/1988 Goodson (List continued on next page.)
4,797,282 A 1/1989 Wahlig et al.
4,856,504 A 8/1989 Yamamoto et al. Primary Examiner—Jose' G, Dees
4,892,730 A 1/1990 G00dS0I1 Assistant Examiner—Michael A. Williamson
4915594 A 4/1990 Yamamoto 91 91' (74) Attorney Agent or Firm—Oliff & Berridge PLC
4,940,579 A 7/1990 Randen ’ ’ ’
4,980,086 A 12/1990 Hiraiwa et al. (57) ABSTRACT
5,061,286 A 10/1991 Lyle
5,254,132 A 10/1993 Barley et al. A composition comprising a polymerizable adhesive mono-
5,259,835 A 11/1993 Clark et al. mer is applied over a biologically active initiator or accel-
5,202,200 A 11/ 1993 Pudef 61 91- erator for polymerization of the monomer. The biologically
2 gun“ ettali active initiator or accelerator is a medicament that provides
, , eung e a. - - - - - _
5,480,935 A 1/1996 Greff et al. a desirled medioal or Ehtehrapeiiilticactivity as Well as enhanc
5,514,371 A 5/1996 Leung et al. mg P0 ymmza 1°“ ° 9 a “V9”
5,514,372 A 5/1996 Leung et al.
5,575,997 A 11/1996 Leung et al. 47 Claims, No Drawings
US 6,455,064 B1
Page 2
OTHER PUBLICATIONS M. Tonetti et al., “Zero—Order Delivery with Periodontal
Placement of Tetracycline—Loaded Ethylene Vinyl Acetate
M. Fan et al., “Effect of Chlorhexidine Varnish System on Fibers” J. Pen-Odom Res. Vol. 25 pp. 243_249 (1990).
Streptococcus Mutant in Fissure Plaques,” Zhonghua Kau-
giang fixue Zazhi) V01. 32, No, 5, pp. 269-271 (1997), J. Goodson, “Treatment of Periodontal Diseases by Local
S. Sonis et al., “Cyanoacrylate as an Adhesive for Other Drug D€1iV€fY”, Recent AdV6mC€S in P€‘7’i0d0m0l08)é V01~
Medicaments: AStudy with Triamcinalone on the Healing of 11, 1313- 61—68, (1991)-
Experimental Oral Ulcers”, Pharmacology and T herapeu-
tics in Dentistry, Vol. 2, pp. 147-156, (1975). * cited by examiner
US 6,455,064 B1
1
METHOD OF APPLYING AN ADHESIVE
COMPOSITION OVER A BIOACTIVE
POLYMERIZATION INITIATOR OR
ACCELERATOR
This application is a continuation-in-part of U.S. patent
application Ser. No. 09/069,875, filed Apr. 30, 1998, the
entire disclosure of which is incorporated herein by refer-
ence.
BACKGROUND OF THE INVENTION
1. Field of Invention
The invention relates to the use of monomer and polymer
compositions as biomedical adhesives and sealants, and
particularly to their use in conjunction with bioactive mate-
rials.
2. Description of Related Art
Products in primary use for wound closure are surgical
sutures and staples. Sutures are recognized to provide
adequate wound support. However, sutures cause additional
trauma to the wound site (by reason of the need for the
needle and suture to pass through tissue and the need to
anesthetize the wound area via needle puncture) and are
time-consuming to place, and, at skin level, can cause
unattractive wound closure marks. Surgical staples have
been developed to speed wound apposition and provide
improved cosmetic results. However, surgical staples also
impose additional wound trauma and require the use of
ancillary and often expensive devices for positioning and
applying the staples. Both sutures and staples are especially
problematic in pediatric cases where the patient may have a
strong fear response and refuse to cooperate with their
placement, and in geriatric cases where the skin tissue is
weaker and prone to tearing.
As an alternate to surgical sutures and staples, adhesives
have been used in wound closure. Similarly, adhesives have
been proposed for use in wound covering and protection in
such topical applications as minor cuts, scrapes, irritations,
compromised skin, surface lacerations, abrasions, burns,
stomatitis, and other open surface wounds. One group of
such adhesives is the 1,1-disubstituted ethylene monomers,
such as the monomeric forms of ot-cyanoacrylates.
For wound closure and covering using adhesives, mix-
tures of cyanoacrylate adhesives and medicaments have
been developed. For example, U.S. Pat. No. 5,684,042 to
Greff et al. discloses a cyanoacrylate composition compris-
ing an antimicrobially-effective amount of an iodine-
containing antimicrobial agent. The iodine-containing anti-
microbial agent is dispersible in the cyanoacrylate
composition and does not cause premature polymerization
of the cyanoacrylate adhesive (i.e., does not initiate
polymerization).
U.S. Pat. No. 3,483,870 to Coover, et al. discloses the use
of methyl ot-cyanoacrylate as a bone cement. The
ot-cyanoacrylate may be blended with antibiotics so long as
the antibiotics do not cause early polymerization (i.e., do not
act as polymerization initiators) or cause adverse effects on
the healing process.
Another method for treating or preventing infections
associated with wounding using adhesives involves layering
a cyanoacrylate over a medicament on a wound site. For
example, U.S. Pat. No. 5,580,565 to Tighe, et al. discloses
the use of a topical ot-cyanoacrylate tissue adhesive to form
a protective barrier over intact or broken skin to allow
healing of the skin to occur. Polymerization of the
10
15
20
25
30
35
40
45
50
55
60
65
2
ot-cyanoacrylate adhesive is initiated by contact with skin
moisture and tissue protein. Tighe et al. also disclose the use
of ot-cyanoacrylate adhesives as a protective layer over
medicaments. The only medicament exemplified by Tighe et
al. is cortisone, which does not initiate polymerization of
cyanoacrylate monomer compositions.
Others have also disclosed the use of cyanoacrylate
adhesives as coverings for medicaments. For example, Bea-
sley et al. disclose application of antibiotics, such as van-
comycin powder or tetracycline, to a wound, followed by
covering of the wound with isobutyl cyanoacrylate. This
type of treatment is disclosed as showing promise for
treatment of bacterially infected tissues. (Beasley, J. D. et al.,
Eflect of Antibiotics and Chemical Adhesives on Infected
Wounds, Mil. Med. 136(6):566—569, 1971). However, nei-
ther of these antibiotics act to initiate polymerization of the
cyanoacrylate.
The use of cyanoacrylate adhesives to cover bioactive
agents is also disclosed in: Miles et al., Oral Surgery, Oral
Medicine, Oral Pathology, Vol. 75, No. 3,397—402 (using
triamcinolone acetonide (Kenalog) or chlorhexidine diglu-
conate (Peridex) as the bioactive agent); and Kaufman, R.
S., The Laryngoscope, 1974, 793-804 (using dexametha-
sone sodium phosphate (Decadron) as the bioactive agent).
U.S. Pat. No. 4,669,491 to Weisberg et al. discloses the
use of biocides covered by protective acrylic artificial nails.
The biocides may be acidic or phenolic, but are preferably
selected so as not to affect the cure rate or the bond strength
of the glue layer. They include thymol, chlorothymol, ben-
zoic acid, p-hydroxybenzoate alkyl esters, 4- and 6-phenyl-
2-chlorophenyl, carvocrol, hexachlorophene, nitroforans,
allicin, 2-phenylphenol, boric acid, mercurials, and such
antibiotics as Bacitracin and Griseofulvin, quaternary
ammonium halides such as
n-alkyldirnethylbenzylammonium chloride, cetyl pyri-
dinium bromide, 5-methyl-2-isopropyl-cyclohexanol,
2-bornanone, cineole, safrole, bornyl chloride,
2-phenoxyethanol, benzylalcohol and ethanol. The biocides
are applied to human fingernails, then covered by solutions
comprising cyanoacrylate adhesive. The biocides are
applied to the natural fingernails in a solution, and the
solution is allowed to dry, leaving the active biocides on the
nails. The biocide-treated fingernails are roughened with an
abrasive, then coated with a monomeric cyanoacrylate solu-
tion to form the artificial fingernails. The cyanoacrylate
monomers are polymerized by the addition of a poly-
methacrylate ester composition containing a benzoyl perox-
ide catalyst. There is no suggestion of selecting the mono-
mers and biocides such that the biocides affect
polymerization.
U.S. Pat. Nos. 4,764,377 and 4,892,736 to Goodson
disclose the use of a therapeutic agent and a cyanoacrylate
adhesive for treatment of periodontal diseases. The thera-
peutic agent is placed within the periodontal pocket, then
covered by a mechanical maintenance system (which may
be in the form of a layer of an adhesive film, such as
n-butylcyanoacrylate), which holds the therapeutic agent in
the periodontal pocket, allowing the therapeutic agent to be
administered to the periodontal site. Goodson and
co-workers also disclose this type of system in, for example,
“J. Periodont. Res”, 1990, Vol. 25, 243-249, and “Recent
Advances in Periodontology”, Vol. 11,61—68. The therapeu-
tic agents include antibacterial agents such as iodine,
sulfonamides, mercurials, bisbiguanides, or phenolics; anti-
biotics such as tetracycline, neomycin, kanamycin,
metranidazole, or canamycin; anti-inflammatory agents such
as indomethacin, eugenol, or hydrocortisone; immunosup-
US 6,455,064 B1
3
pressive or stimulatory agents such as methotrexate or
levamasole; dentinal desensitizing agents such as strontium
chloride or sodium fluoride; odor masking agents such as
peppermint oil or chlorophyll; immune reagents such as
immunoglobulin or antigens; local anesthetic agents such as
lidocaine or benzocaine; nutritional agents such as amino
acids, essential fats, and vitamin C; antioxidants such as
alphatocopherol and butylated hydroxy toluene;
lipopolysaccharide complexing agents such as polymyxin;
or peroxides such as urea peroxide. There is no suggestion
of selecting the monomers and biocides such that the bio-
cides affect polymerization.
U.S. Pat. Nos. 5,514,371 and 5,624,669 to Leung, et al.
disclose the addition of a therapeutic agent in a cyanoacry-
late composition. The cyanoacrylate adhesive forms a
matrix for the therapeutic agent, with the therapeutic agent
being released in vivo over time from the matrix during
biodegradation of the polymer. The therapeutic agent is not
used as a polymerization initiator or a polymerization rate
modifier.
U.S. Pat. No. 4,940,579 to Randen discloses a composi-
tion comprising a medicament and a cyanoacrylate adhesive.
The composition is used to deliver medicaments to non-
mucosal areas of mammal bodies. However, Randen does
not disclose the use of medicaments as polymerization
initiators and/or rate accelerators.
U.S. Pat. No. 5,254,132 to Barley et al. discloses the use
of cyanoacrylate adhesives in conjunction with antibiotics.
The antibiotics are added to the cyanoacrylate compositions
and stored in a sterile applicator for use in a single-dose
application. The composition is maintained in a sealed
container to avoid polymerization prior to application;
therefore, the antibiotic does not initiate or accelerate poly-
merization of the adhesive composition.
Typically, when used in medical applications, cyanoacry-
late adhesives are applied in monomeric form to the surfaces
to be joined, sealed, or otherwise treated. Typically, in situ
anionic polymerization of the monomer occurs, giving rise
to the desired adhesive bond or covering. Initiation of
polymerization in situ typically utilizes moisture and/or
proteins naturally present in the tissue being treated. Thus,
in applications where tissue fluids are present, it is not
necessary to add polymerization initiators or rate accelera-
tors to cyanoacrylate composition. However, sometimes it is
desirable to apply the cyanoacrylate adhesives to dry tissues
(i.e., tissues that are essentially free of tissue fluids or the
like). In addition, to prolong the shelf life of these extremely
reactive cyanoacrylate monomers, they are formulated with
stabilizers to avoid their premature polymerization. In these
situations, polymerization of the cyanoacrylate adhesive
proceeds slowly, causing inconvenience to the user. To
overcome this inconvenience, polymerization initiators and/
or rate accelerators have been added to the cyanoacrylate
adhesive composition.
When an initiator or accelerator is added to the
composition, it is not added until immediately prior to
application of the adhesive. For example, U.S. Pat. No.
4,042,442 to Dombroski et al. discloses the addition of a
polymerization initiator (either caffeine or theobromine) to a
cyanoacrylate adhesive composition. The caffeine or theo-
bromine is added to the adhesive composition in one of two
ways. In the first way, the caffeine or theobromine can be
mixed with the cyanoacrylate adhesive composition by
stirring just prior to application of the adhesive to the
substrates to be joined. In the second way, the caffeine or
theobromine is dissolved in a volatile solvent, applied to the
10
15
20
25
30
35
40
45
50
55
60
65
4
surfaces to be joined, the volatile solvent is allowed to
evaporate, and then the cyanoacrylate adhesive composition
is applied to the surfaces of the substrates to be joined.
Commonly assigned U.S. Pat. No. 5,928,611
(corresponding to earlier-published PCT Application No.
WO 96/40797), the disclosure of which is hereby incorpo-
rated in its entirety, discloses the incorporation of a poly-
merization initiator or polymerization rate modifier in an
applicator tip. Incorporation of the initiator or the rate
modifier into the applicator tip allows a level of control over
the polymerization rate that cannot be achieved through
reliance on polymerization initiators naturally present at the
wound site. Incorporation of the initiator and/or rate modi-
fier into the applicator tip provides convenience to the user,
since a single applicator is required, and no additional
mixing is needed. However, this application does not dis-
close the use of a medicament as an initiator or accelerator
of polymerization for monomeric cyanoacrylate composi-
tions.
U.S. Pat. No. 5,866,106 to Papay discloses the addition of
vitamins and minerals in a cyanoacrylate composition. The
cyanoacrylate adhesive composition is disclosed as useful
for an adhesive for bonding nail tips, and for forming a nail
polish product.
Commonly assigned U.S. patent application Ser. No.
09/343,914, filed Jun. 30, 1999, discloses monomeric adhe-
sive composition comprising a polymerizable 1,1-
disubstituted ethylene monomer and a flavoring additive,
and methods of making and using such a composition. In
these compositions, the flavoring additive is mixed directly
with the monomeric adhesive.
Although the use of medicaments in conjunction with
cyanoacrylate adhesive compositions is known, and the use
of polymerization initiators with cyanoacrylate adhesive
compositions is known, there exists a need to provide a
method for delivering pharmaceutically-effective levels of
medicaments to wound sites along with cyanoacrylate adhe-
sives that is convenient, reliable, and effective. To address
this need, the present invention provides methods and com-
positions that use pharmaceutically-effective amounts of
medicaments as polymerization initiators or accelerators for
monomeric adhesive compositions.
SUMMARY OF THE INVENTION
According to the present invention, a medicament acts as
both an initiator and/or an accelerator of polymerization of
a monomeric adhesive composition and as a pharmaceuti-
cally active material. As used herein, a polymerization
initiator is any material that causes a cyanoacrylate compo-
sition applied to a substantially dry tissue (i.e., in the
substantial absence of plasma or like tissue fluids) to poly-
merize in less than 300 seconds at ambient temperature, for
example approximately 21—25° C. Preferably, the initiator
causes the cyanoacrylate composition to polymerize in less
than 150 seconds, or more preferably less than 135 seconds
at ambient temperature, for example, at approximately
21—25° C. As used herein, a polymerization accelerator is
any material that accelerates the rate of polymerization of a
cyanoacrylate composition such that polymerization that
would normally take more than 300 seconds at ambient
temperature, for example at approximately 21—25° C. occurs
in less than 300 seconds, preferably in less than 150 seconds,
and more preferably in less than 135 seconds. The initiator
or rate accelerator can be, for example, a catalyst, but can
also be a material that is consumed or chemically modified
during the polymerization reaction. The medicament can be
US 6,455,064 B1
5
any material that has both a pharmaceutical effect as applied
and a polymerization initiating or rate accelerating activity,
including, but not limited to, antibiotics, antimicrobials,
antiseptics, bacteriocins, bacteriostats, disinfectants,
steroids, anesthetics, antifingal agents, anti-inflammatory
agents, antibacterial agents, antiviral agents, antitumor
agents, and tissue growth promoting substances.
The invention provides, among other things, a method of
closing, sealing, covering, and/or protecting deep and/or
surface wounds, such as those resulting from surgery or
from minor cuts, scrapes, irritations, compromised skin,
lacerations, burns, sores, abrasions, and the like. The method
includes laying down a medicament onto a wound or sore
and applying over the medicament a polymerizable
monomer-containing composition whose polymerization is
initiated or accelerated by the medicament.
In embodiments, the invention also provides a method of
delivering a medicament locally or systemically to a human
or animal by applying the medicament to a tissue site and
applying over the medicament a polymerizable monomer-
containing composition whose polymerization is initiated or
accelerated by the medicament. As used herein, tissue
includes any tissue of a human or animal, such as skin,
mucous membranes, oral/nasal tissues, gastrointestinal
tissues, organ tissues, tumors, non-keratinous tissue, etc.
The present invention also provides a kit comprising a
saleable package containing a container of a polymeriz-
able monomer composition as described herein, and (ii) a
container of a medicament, preferably one that acts as a
polymerization initiator or polymerization rate modifier for
said monomer composition. The containers can preferably
be in the form of, or part of, an applicator or applicator
system and are preferably sterilizable. For example, the
package and its contents can preferably be sterilized simul-
taneously.
The present invention provides several advantages over
wound treating methods now in use, including the ability to:
a) control the molecular weight distribution of the poly-
merized or cross-linked material (through the use of the
polymerization initiator and/or polymerization rate
accelerator);
b) control the setting time of the polymerized or cross-
linked cyanoacrylate adhesive;
c) control the flow properties of polymerizable cyanoacry-
late compositions;
d) provide a medicament to a patient while simulta-
neously providing wound closure, protection, and/or
coverage;
e) provide a medicament to a patient through topical
administration; and/or
f) any combination of the above.
DETAILED DESCRIPTION OF PREFERRED
EMBODIMENTS
According to the invention, a medicament is applied to a
tissue prior to application of the monomer-containing com-
position. The medicament acts to initiate and/or accelerate
polymerization of the monomer composition. Thus, the
medicament provides not only a biological activity, but a
chemical one as well.
Examples of such medicaments include, but are not
limited to antibiotics, antimicrobials, antiseptics,
bacteriocins, bacteriostats, disinfectants, steroids,
anesthetics, antifungal agents, anti-inflammatory agents,
antibacterial agents, antiviral agents, antitumor agents,
growth promoters, and mixtures thereof.
10
15
20
25
30
35
40
45
50
55
60
65
6
Exemplary medicaments include, but are not limited to,
quaternary ammonium halides such as benzalkonium chlo-
ride and benzethonium chloride; chlorhexidine sulfate; gen-
tamicin sulfate; hydrogen peroxide; quinolone thioureas;
silver salts, including, but not limited to, silver acetate, silver
benzoate, silver carbonate, silver chloride, silver citrate,
silver iodide, silver nitrate, and silver sulfate; copper
compounds, including but not limited to copper chloride,
copper sulfate, and copper peptides as discussed, for
example, in “Copper: An Essential Element for Life,” Pro-
Cyte Corporation, available at http://www.humatech.com/
technology.html Oct. 28, 1999, the entire disclosure of
which is incorporated herein by reference; sodium
hypochlorite; salts of sulfadiazine, including, but not limited
to silver, sodium, and zinc complexes and salts; antioxidants
such as vitamins such as vitamin E, other agents mentioned
above; and mixtures thereof.
Preferable medicaments are those that are anions or help
in radical generation or that are ion pairs or are themselves
radicals.
In embodiments, the medicament is preferably a quater-
nary ammonium halide such as alkylbenzyldimethylammo-
nium chloride (benzalkonium chloride; BAC) with an alkyl
containing 6-18 carbon atoms, its pure components, or
mixtures thereof, or benzethonium chloride; or a salt of
sulfadiazine, such as a silver, sodium, or zinc salt.
Another example of a medicament that possesses poly-
merization initiation and antiviral, antimicrobial, and/or
antifingal properties is Gentian Violet, also known as crystal
violet or methylrosaniline chloride. Examples of materials
that possess polymerization initiation and wound healing
properties also include various zinc complexes and zinc
salts, antioxidants such as vitamin E and other vitamins and
the like, and copper compounds such as copper chloride,
copper sulfate and copper peptides.
Crystal violet has many benefits, particularly when used
in conjunction with the adhesive monomer compositions of
the present invention. One benefit of crystal violet is that in
addition to providing the antiviral, antimicrobial and/or
antifimgal effects, it also provides a visible color at the site
of application, which can help ensure that a sufficient or
desired amount of adhesive has been applied. However,
whereas crystal violet is known to leave “tattoo” scars on
tissue when it is applied, such tattoo scarring does not result
when used in combination with the adhesive monomer
compositions of the present invention. Rather, the crystal
violet provides its coloring and other effects, without leaving
a long-term or permanent mark.
Suitable zinc complexes and salts include, but are not
limited to, zinc salts of cyanoacrylic acid, zinc salts of
cyanoacetic acid, zinc salts of dicyanoglutaric acid, zinc
salts of rosin, zinc oxide, zinc salts of polycyanoacrylic acid,
zinc salts of polyacrylic acid, zinc bacitracin, zinc salicylate,
zinc stearate, zinc citrate, zinc lactate, mixtures thereof, and
the like. Preferably, the zinc compounds are of Zn“. Such
zinc compounds are particularly effective in promoting
healing of leg ulcers, thermal bums, and the like.
The medicaments can be tested for initiation ability by
pipetting an appropriate volume of a solution of the medi-
cament prepared in a volatile solvent in a differential scan-
ning calorimetric aluminum pan. The volatile solvent is
allowed to dry under ambient conditions. Alternatively, the
appropriate quantity of the medicament is dispensed directly
onto the differential scanning calorimetric pan. In either of
the abovementioned cases, 25 yl of the chosen monomer
solution is pipetted into the pan. The time taken for the
US 6,455,064 B1
7
monomer composition to polymerize to the point of a gel is
the polymerization time.
In embodiments, the composition can comprise other
polymerization initiators and/or rate accelerators in addition
to the medicament. Particular additional initiators for par-
ticular systems may be readily selected by one of skill in the
art without undue experimentation. Suitable additional poly-
merization initiators for the cyanoacrylate compositions
include, but are not limited to, other medicaments; detergent
compositions; surfactants: e.g., nonionic surfactants such as
polysorbate 20 (e.g., Tween 20”‘; ICI Americas), polysor-
bate 80 (e.g., Tween 80”‘; ICI Americas), and poloxamers;
cationic surfactants such as tetrabutylammonium bromide
and benzethonium chloride or its pure components; anionic
surfactants such as, stannous octoate (tin (II)
2-ethylhexanoate), and sodium tetradecyl sulfate; and
amphoteric or zwitterionic surfactants such as
dodecyldimethyl(3-sulfopropyl) ammonium hydroxide,
inner salt; amines, imines and amides, such as imidazole,
tryptamine, urea, arginine and povidine; phosphines, phos-
phites and phosphonium salts, such as triphenylphosphine
and triethyl phosphite; alcohols such as ethylene glycol;
methyl gallate; ascorbic acid; tannins and tannic acid; inor-
ganic bases and salts, such as sodium bisulfite, magnesium
hydroxide, calcium sulfate and sodium silicate; sulfur com-
pounds such as thiourea and polysulfides; polymeric cyclic
ethers such as monensin, nonactin, crown ethers, calixarenes
and polymeric epoxides; cyclic and acyclic carbonates, such
as diethyl carbonate; phase transfer catalysts such as Ali-
quatTM336 (General Mills, Minneapolis, Min.); organome-
tallics; manganese acetylacetonate; and radical initiators and
radicals, such as di-t-butyl peroxide and azobisisobutyroni-
trile.
The polymerizable and/or cross-linkable material may
also contain an initiator which is inactive until activated by
a catalyst or accelerator (included within the scope of the
term “initiator” as used herein). These initiators can be
activated by appropriate stimulation such as heat and/or light
(e.g., ultraviolet or visible light).
Compositions employed in the invention are preferably
sterilizable.
The amount of medicament applied should be an amount
sufficient to cause initiation or acceleration of the rate of
polymerization upon contact and mixing of the medicament
with the monomeric composition. The medicament should
also be applied in a pharmaceutically-effective amount and
should be selected in conjunction with the specific polymer-
izable monomeric compound such that the medicament will
function as a polymerization initiator and/or rate accelerator
for the chosen monomer. Such a selection process can easily
be performed by one of skill in the art.
The medicament can have a pharmaceutical effect only at
the site of application (i.e., limited to the tissue on/in which
it is applied), or it can have a systemic effect (by systemic,
it is not only meant that the medicament has an effect
throughout the patient’s body, but also at a specific site other
than the site of application). In embodiments where the
medicament is applied in an amount sufficient to show a
systemic pharmaceutical activity, it can be absorbed,
transported, or otherwise distributed to the site or sites
within the patient where the pharmaceutical activity is
desired, e.g., through the cardiovascular or lymph systems.
Depending on the particular requirements of the user, the
medicament and adhesive compositions of this invention can
be applied by any appropriate device, which can be the same
or different for the medicament and adhesive composition.
10
15
20
25
30
35
40
45
50
55
60
65
8
Examples include, but are not limited to, a glass stirring rod,
sterile brush, medicine dropper, or an applicator containing
a crushable ampoule and an applicator tip, as disclosed in
U.S. Pat. No. 5,928,611, the entire disclosure of which is
incorporated herein by reference. In many situations a pump
or pressurized aerosol dispensing package is preferred in
which the adhesive composition is in solution with a com-
patible anhydrous propellant. Apreferred device is an absor-
bent swab or wipe.
The medicament may be in the form of a solid, such as a
powder or a solid film, or in the form of a liquid, such as a
watery, viscous, or paste-like material. The medicament may
also be compounded with a variety of additives, such as
surfactants or emulsifiers, and vehicles.
The methods of this invention can be used to join together
two surfaces, as a replacement for or in addition to sutures,
by applying the present compositions to opposing wound
surfaces that are then held together while polymerization
proceeds. The methods of this invention can also be used to
coat, protect, or otherwise cover surface, superficial, or
otherwise topical wounds or pathologies including, but not
limited to, minor cuts, scrapes, irritations, compromised
skin, superficial lacerations, abrasions, burns, sores, and
stomatitis. The methods of the invention can also be used on
tissues that do not show any signs of tissue damage. For
example, the methods can be used to deliver medicaments to
a patient through healthy tissue. They can also be used, for
example, to locally deliver medicaments to tissues such as
tumors or organs.
In one embodiment, the present invention provides a
replacement for sutures and includes a method of delivering
a medicament to a tissue by forming a biocompatible film
across abutted tissue surfaces, comprising: (a) holding
together at least two tissue surfaces to form abutted tissue
surfaces, (b) applying a medicament which is a polymeriza-
tion initiator or polymerization rate accelerator to the abut-
ted tissue surfaces, (c) applying on to the medicament and
across the abutted tissue surfaces a polymerizable adhesive
monomer composition, and (d) allowing the composition to
polymerize and form a biocompatible film on the abutted
tissue surfaces. A subsequent coating may be applied imme-
diately after application of a previous coating or after a
previous coating has been completely polymerized.
Preferably, the monomer composition applied to the abutted
tissue surface is allowed to at least partially polymerize prior
to subsequent coatings or applications of additional mono-
mer composition. A coating of an adhesive composition
having a monomer different from the monomer of the first or
previous coating may be applied as the second or subsequent
coating.
Addition of a plasticizing agent and acidic stabilizing
agent can cause such a polymer coating to have sufficient
bond strength and flexibility even with significant film or
coating thicknesses. Suitable film thickness range from 0.1
mm to 2.0 mm or 3.0 mm or higher, preferably from 0.2 mm
to 1.5 mm, and more preferably from 0.4 mm to 0.8 mm.
In embodiments, the biocompatible film formed as a
replacement for sutures may have an in vivo film strength of
at least 70 mm Hg of vacuum pressure required to induce
wound failure, generally from 70 mm Hg to 400 mm Hg of
vacuum pressure required to induce wound failure, prefer-
ably from 90 mm Hg to 400 mm Hg of vacuum pressure
required to induce wound failure, and more preferably from
100 mm Hg to 400 mm Hg of pressure required to induce
wound failure.
When repairing injured tissues (for example, to control
bleeding), the invention comprises first sponging the site to
US 6,455,064 B1
9
be repaired to remove superficial or body tissue fluids.
Desired bonding of tissues or hemostasis can also proceed
well in the presence of blood and other body fluids as well
as on dry tissue. The bonds formed are of adequate flexibility
and strength to withstand normal movement of tissue. In
addition, bond strength is maintained as natural wound
healing proceeds.
In another embodiment, the present invention is directed
to a method of treating a superficial or topical pathology,
including, but not limited to a skin wound such as a minor
cut, scrape, irritation, compromised skin, superficial
laceration, burn, or abrasion, or a sore on a mucous mem-
brane. The method comprises (a) applying a medicament
that is a polymerization initiator or rate accelerator to the
affected tissue, (b) applying a polymerizable monomer-
containing composition over the medicament; (c) allowing
the composition to polymerize; and (d) optionally, applying
the composition at least once more to the same site.
Suitable film thickness for such topical applications is
preferably between 1 and 10,000 ym, for example between
1 and 1000 ym. In embodiments, the biocompatible film so
formed may have a film strength of at least 5 mm Hg, such
as 5-400 mm Hg, preferably from 50-400 mm Hg.
In embodiments, the present invention provides a method
of delivering a medicament to a tissue by (a) applying a
medicament that is a polymerization initiator and/or poly-
merization rate accelerator to a site (e.g., directly to tissue);
(b) applying a polymerizable monomer-containing compo-
sition over the medicament; and (c) optionally, applying the
composition at least once more to the same site. Suitable
film thickness and strength are preferably those disclosed
above for other uses.
In embodiments, the medicament is released to the tissue
to which it is in contact at a constant, or near constant, rate
over a period of time while in contact with the affected
tissue.
The present invention also provides a kit for delivering a
medicament to a patient. The kit comprises a container with
a polymerizable monomer composition, such as a
cyanoacrylate adhesive. The kit also comprises another
container with a medicament. The medicament is selected so
that it functions in conjunction with the co-packaged poly-
merizable monomer composition to initiate polymerization
of the monomer or modify (e.g., accelerate) the rate of
polymerization for the monomer to form a polymeric adhe-
sive. The proper combination of medicament and polymer-
izable monomer can be determined easily by one of skill in
the art. The medicament is supplied in the kit in an amount
that will be pharmaceutically effective when applied topi-
cally (i.e., directly to tissue). A separate container of fla-
vorant may also optionally be included in the kit.
The monomer composition, in embodiments, is preferably
a monomeric (including prepolymeric) adhesive composi-
tion. In embodiments, the monomer is a 1,1-disubstituted
ethylene monomer, e.g., an ot-cyanoacrylate. Preferred
monomer compositions of the present invention and poly-
mers formed therefrom are useful as tissue adhesives, seal-
ants for preventing bleeding or for covering open wounds,
and in other biomedical applications. They find uses in, for
example, apposing surgically incised or traumatically lacer-
ated tissues; retarding blood flow from wounds; drug deliv-
ery; dressing bums; dressing skin or other superficial or
surface wounds (such as abrasions, chaffed or raw skin,
and/or stomatitis); and aiding repair and regrowth of living
tissue.
Monomers that may be used in this invention are readily
polymerizable, e.g. anionically polymerizable or free radical
10
15
20
25
30
35
40
45
50
55
60
65
10
polymerizable, or polymerizable by zwitterions or ion pairs
to form polymers. Such monomers include those that form
polymers, that may, but do not need to, biodegrade. Such
monomers are disclosed in, for example, U.S. Pat. No.
5,328,687 to Leung, et al., which is hereby incorporated in
its entirety by reference herein.
Useful 1,1-disubstituted ethylene monomers include, but
are not limited to, monomers of the formula:
HRC:CXY (1)
wherein X and Y are each strong electron withdrawing
groups, and R is H, —CH=CH2 or, provided that X and Y
are both cyano groups, a C1-C4 alkyl group.
Examples of monomers within the scope of formula (I)
include alpha-cyanoacrylates, vinylidene cyanides, C1-C4
alkyl homologues of vinylidene cyanides, dialkyl methylene
malonates, acylacrylonitriles, vinyl sulfinates and vinyl sul-
fonates of the formula CH2=CX‘Y‘ wherein X‘ is —SO2R‘
or —SO8R‘ and Y‘ is —CN, —COOR‘, —COCH8, —SO2R‘
or —SO3R‘, and R‘ is H or hydrocarbyl.
Preferred monomers of formula (I) for use in this inven-
tion are alpha-cyanoacrylates. These monomers are known
in the art and have the formula:
(11)
CN
HR2C= C
COOR3
wherein R2 is hydrogen and R3 is a hydrocarbyl or substi-
tuted hydrocarbyl group; a group having the formula —R4—
O—R5—O—R6 or the formula —R5—O—R6, wherein R4
is a 1,2-alkylene group having 2-4 carbon atoms, R5 is an
alkylene group having 2-4 carbon atoms, and R6 is an alkyl
group having 1-6 carbon atoms; or a group having the
formula:
_R7_(”:_O_Rs,
0
wherein R7 is:
CH3
, jCHj, or :C(CH3)2:,
T (CH2)n
wherein n is 1-10, preferably 1-5 carbon atoms and R8 is an
organic moiety.
Examples of suitable hydrocarbyl and substituted hydro-
carbyl groups include straight chain or branched chain alkyl
groups having 1-16 carbon atoms; straight chain or
branched chain C1-C16 alkyl groups substituted with an
acyloxy group, a haloalkyl group, an alkoxy group, a halo-
gen atom, a cyano group, or a haloalkyl group; straight chain
or branched chain alkenyl groups having 2 to 16 carbon
atoms; straight chain or branched chain alkynyl groups
having 2 to 12 carbon atoms; cycloalkyl groups; aralkyl
groups; alkylaryl groups; and aryl groups.
The organic moiety R8 may be substituted or unsubsti-
tuted and may be straight chain, branched or cyclic,
saturated, unsaturated or aromatic. Examples of such
organic moieties include C1-C8 alkyl moieties, C2-C8 alk-
enyl moieties, C2-C8 alkynyl moieties, C3-C12
cycloaliphatic moieties, aryl moieties such as phenyl and
substituted phenyl and aralkyl moieties such as benzyl,
US 6,455,064 B1
11
methylbenzyl and phenylethyl. Other organic moieties
include substituted hydrocarbon moieties, such as halo (e.g.,
chloro-, fluoro- and bromo-substituted hydrocarbons) and
oxy- (e.g., alkoxy substituted hydrocarbons) substituted
hydrocarbon moieties. Preferred organic radicals are alkyl,
alkenyl and alkynyl moieties having from 1 to about 8
carbon atoms, and halo-substituted derivatives thereof Par-
ticularly preferred are alkyl moieties of 4 to 6 carbon atoms.
In the cyanoacrylate monomer of formula (II), R3 is
preferably an alkyl group having 1-10 carbon atoms or a
group having the formula —AOR9, wherein A is a divalent
straight or branched chain alkylene or oxyalkylene moiety
having 2-8 carbon atoms, and R9 is a straight or branched
alkyl moiety having 1-8 carbon atoms.
Examples of groups represented by the formula -AOR9
include 1-methoxy-2-propyl, 2-butoxy ethyl, isopropoxy
ethyl, 2-methoxy ethyl, and 2-ethoxy ethyl.
Preferred ot-cyanoacrylate monomers used in this inven-
tion include 2-octyl cyanoacrylate, dodecyl cyanoacrylate,
2-ethylhexyl cyanoacrylate, butyl cyanoacrylate, methyl
cyanoacrylate, 3-methoxybutyl cyanoacrylate,
2-butoxyethyl cyanoacrylate, 2-isopropoxyethyl
cyanoacrylate, or 1-methoxy-2-propyl cyanoacrylate.
The ot-cyanoacrylates of formula (II) can be prepared
according to methods known in the art. U.S. Pat. Nos.
2,721,858 and 3,254,111, each of which is hereby incorpo-
rated in their entirety by reference herein, disclose methods
for preparing ot-cyanoacrylates. For example, the
ot-cyanoacrylates can be prepared by reacting an alkyl
cyanoacetate with formaldehyde in a non-aqueous organic
solvent and in the presence of a basic catalyst, followed by
pyrolysis of the anhydrous intermediate polymer in the
presence of a polymerization inhibitor. The ot-cyanoacrylate
monomers prepared with low moisture content and essen-
tially free of impurities are preferred for biomedical use.
The ot-cyanoacrylates of formula (II) wherein R3 is a
group having the formula —R4—O—R5—O—R6 or the
formula —R5—O—R6 can be prepared according to the
method disclosed in U.S. Pat. No. 4,364,876 to Kimura et
al., which is hereby incorporated in its entirety by reference.
In the Kimura et al. method, the ot-cyanoacrylates are
prepared by producing a cyanoacetate by esterifying
cyanoacetic acid with an alcohol or by transesterifying an
alkyl cyanoacetate and an alcohol; condensing the cyanoac-
etate and formaldehyde or para-formaldehyde in the pres-
ence of a catalyst at a molar ratio of 0.5—1.5:1, preferably
0.8—1.2:1, to obtain a condensate; depolymerizing the con-
densation reaction mixture either directly or after removal of
the condensation catalyst to yield crude cyanoacrylate; and
distilling the crude cyanoacrylate to form a high purity
cyanoacrylate.
The ot-cyanoacrylates of formula (II) wherein R3 is a
group having the formula
—R7— C—o —R8
O
can be prepared according to the procedure described in U.S.
Pat. No. 3,995,641 to Kronenthal et al., which is hereby
incorporated in its entirety by reference. In the Kronenthal
et al. method, such ot-cyanoacrylate monomers are prepared
by reacting an alkyl ester of an ot-cyanoacrylic acid with a
cyclic 1,3-diene to form a Diels-Alder adduct which is then
subjected to alkaline hydrolysis followed by acidification to
form the corresponding ot-cyanoacrylic acid adduct. The
ot-cyanoacrylic acid adduct is preferably esterified by an
10
15
20
25
30
35
40
45
50
55
60
65
12
alkyl bromoacetate to yield the corresponding carbalkoxym-
ethyl ot-cyanoacrylate adduct. Alternatively, the
ot-cyanoacrylic acid adduct may be converted to the
ot-cyanoacrylyl halide adduct by reaction with thionyl chlo-
ride. The ot-cyanoacrylyl halide adduct is then reacted with
an alkyl hydroxyacetate or a methyl substituted alkyl
hydroxyacetate to yield the corresponding carbalkoxym-
ethyl ot-cyanoacrylate adduct or carbalkoxy alkyl
ot-cyanoacrylate adduct, respectively. The cyclic 1,3-diene
blocking group is finally removed and the carbalkoxy
methyl ot-cyanoacrylate adduct or the carbalkoxy alkyl
ot-cyanoacrylate adduct is converted into the corresponding
carbalkoxy alkyl ot-cyanoacrylate by heating the adduct in
the presence of a slight deficit of maleic anhydride.
Examples of monomers of formula (II) include cyano-
pentadienoates and ot-cyanoacrylates of the formula:
(III)
CN
HZC:C
COOR3
wherein Z is —CH=CH2 and R3 is as defined above. The
monomers of formula (III) wherein R3 is an alkyl group of
1-10 carbon atoms, i.e., the 2-cyanopenta-2,4-dienoic acid
esters, can be prepared by reacting an appropriate
2-cyanoacetate with acrolein in the presence of a catalyst
such as zinc chloride. This method of preparing
2-cyanopenta-2,4-dienoic acid esters is disclosed, for
example, in U.S. Pat. No. 3,554,990, which is hereby
incorporated in its entirety by reference.
Preferred monomers are alkyl ot-cyanoacrylates and more
preferably octyl ot-cyanoacrylates, especially 2-octyl
ot-cyanoacrylate. Monomers utilized in the present applica-
tion should be very pure and contain few impurities (e.g.,
surgical grade).
The composition nay optionally also include at least one
plasticizing agent that imparts flexibility to the polymerized
monomer formed on the wound, incision, or abrasion. The
plasticizing agent preferably contains little or no moisture
and should not significantly affect the polymerization of the
monomer.
Examples of suitable plasticizers include acetyl tributyl
citrate, dimethyl sebacate, triethyl phosphate, tri(2-
ethylhexyl)phosphate, tri(p-cresyl) phosphate, glyceryl
triacetate, glyceryl tributyrate, diethyl sebacate, dioctyl
adipate, isopropyl myristate, butyl stearate, lauric acid,
trioctyl trimellitate, dioctyl glutarate and mixtures thereof.
Preferred plasticizers are tributyl citrate and acetyl tributyl
citrate. In embodiments, suitable plasticizers include poly-
meric plasticizers, such as polyethylene glycol (PEG) esters
and capped PEG esters or ethers, polyester glutarates and
polyester adipates.
The composition may also optionally include at least one
stabilizing agent that inhibits polymerization. Such stabiliz-
ing agents may also include mixtures of anionic stabilizing
agents and radical stabilizing agents.
Examples of suitable anionic stabilizing agents include,
but are not limited to, sultones (e.g., ot-chloro-ot-hydroxy-
o-toluenesulfonic acid-y-sultone), sulfur dioxide, sulfuric
acid, sulfonic acid, lactone, boron trifluoride, organic acids,
such as acetic acid or phosphoric acid, alkyl sulfate, alkyl
sulfite, 3-sulfolene, alkylsulfone, alkyl sulfoxide,
mercaptan, and alkyl sulfide and mixtures thereof. Prefer-
able anionic stabilizing agents are acidic stabilizing agents
of organic acids such as acetic acid or phosphoric acid. In
embodiments, the amount of sulfur dioxide stabilizer is less
US 6,455,064 B1
13
than 100 ppm, preferably 5-75 ppm, and more preferably
from about 20-50 ppm. The amount of sultone and/or
trifluoracetic acid is about 500-3000 ppm.
Examples of suitable radical stabilizing agents include
hydroquinone, hydroquinone monomethyl ether, catechol,
pyrogallol, benzoquinone, 2-hydroxybenzoquinone,
p-methoxy phenol, t-butyl catechol, butylated hydroxy ani-
sole (BHA), butylated hydroxy toluene, and t-butyl hydro-
quinone. In embodiments, the amount of BHA is about
1,000-5,000 ppm.
Suitable acidic stabilizing agents include those having
aqueous pKa ionization constants ranging from -12 to 7,
about -5 to about 7, preferably from about -3.5 to about 6.
For example, suitable acidic stabilizing agents include:
hydrogen sulfide (pKa7.0), carbonic acid (pKa6.4), triacetyl-
methane (pKa5.9), acetic acid (pKa4.8), benzoic acid
(pKa4.2), 2,4-dinitrophenol (pKa4.0), formic acid (pKa3.7),
nitrous acid (pKa3.3), hydrofluoric acid (pKa3.2), chloro-
acetic acid (pKa2.9), phosphoric acid (pKa2.2), dichloro-
acetic acid (pKa1.3), trichloroacetic acid (pKa0.7), 2,4,6-
trinitrophenol (picric acid) (pKa0.3), trifluoroacetic acid
(pKa0.2), sulfuric acid (pKa3.0), sulfurous acid, and mix-
tures thereof. In embodiments, the amount of trifluoroacetic
acid is about 500-1,500 ppm. Combinations of the above
stabilizers, such as sulfur dioxide and sulfuric acid, boron
trifluoride and sulfuric acid, sulfur dioxide and chloroacetic
acid, boron trifluoride and chloroacetic acid, sulfur dioxide
and trifluoroacetic acid, and boron trifluoride and trif-
louroacetic acid can be used.
When adding the acidic stabilizing agents mentioned
above to the adhesive composition, the addition of plasti-
cizing agents in amounts ranging from about 0.5 wt. % to
about 16 wt. %, preferably from about 3 wt. % to about 9 wt.
%, and more preferably from about 5 wt. % to about 7 wt.
% provides increased elongation and toughness of the poly-
merized monomer over polymerized monomers not having
plasticizing agents and acidic stabilizing agents.
The concentration of the acidic stabilizing agents utilized
may vary depending on the strength of the acid. For
example, when using acetic acid, a concentration of 80-200
ppm (wt/wt), preferably 90-180 ppm (wt/wt), and more
preferably 100-150 ppm (wt/wt) may be utilized. When
using a stronger acid such as phosphoric acid, a concentra-
tion range of 20-80 ppm (wt/wt), preferably, 30-70 ppm
(wt/wt) and more preferably 40-60 ppm (wt/wt) may be
utilized. In embodiments, the amount of trifluoroacetic acid
is about 100 to 3000 ppm, preferably 500-1500 ppm. In
other embodiments, the amount of phosphoric acid is about
10-200 ppm, preferably about 50-150 ppm, and more
preferably about 75-125 ppm.
In addition to the above materials, or in place thereof, the
medicament, applicator tip and/or the adhesive composition
can also include various other materials that may or may not
act as a polymerization initiator or rate modifier, or such
materials may be separately applied. For example, the
applicator tip and/or the adhesive composition can include a
flavorant, such that it imparts a flavor to the adhesive
material when the adhesive material is applied to a surface.
Incorporation of a flavorant is particularly preferred, for
example, when the cyanoacrylate adhesive material is to be
applied to oral surfaces, such as to treat stomatitis or cold
sores. Such a flavorant can also, in embodiments, be incor-
porated with the medicament that is applied prior to the
adhesive composition. Alternatively, it can be separately
applied before or after the medicament.
When a flavorant is to be included, any of the various
available and suitable flavorants can be used. Suitable fla-
10
15
20
25
30
35
40
45
50
55
60
65
14
vorants can be selected, for example, from among fruit oil,
vegetable oil, esters, heterocyclic compounds, fruit extract
and vegetable extract. In particular, the flavoring additive
may be selected from among any of the various known
flavoring additives, including, but not limited to, 5-fold
orange oil (Florida Chemical Co.), anethole (Aldrich),
banana distillate (Florida Chemical Co.), benzaldehyde
(Aldrich), clove oil (Humco), cold pressed valencia orange
oil (Florida Chemical Co.), cold pressed grapefruit oil
(Florida Chemical Co.), cold pressed lemon oil (Florida
Chemical Co.), cold pressed lime oil (Florida Chemical
Co.), cucumber distillate (Florida Chemical Co.), honey
distillate (Florida Chemical Co.), menthol (Aldrich), alkyl
salicylates such as methyl salicylate (Lorann Oils or
Aldrich), monosodium glutamate, spearmint, Wintergreen,
cinnamon, citrus, cherry, apple, peppermint, peppermint oil
(Humco), peppermint spirit, vanillin (Aldrich), thymol
(Aldrich), and ethyl vanillin, mixtures thereof, and the like.
The flavorant can also be a sweetener, such as a suitable
sugar or sugar substitute. Examples of such sweeteners
include, but are not limited to, saccharin, sorbitol, mannitol,
aspartame, sucrose, glucose, fructose, and the like. In pre-
ferred embodiments, the flavoring additive is a flavoring
agent as defined in 21 C.F.R. §172.510, dated Jun. 12, 1989,
and §172.515, dated Apr. 1, 1996, the entireties of which are
incorporated herein by reference. Flavoring additives are
also disclosed in U.S. patent application Ser. No. 09/343,
914, filed Jun. 30, 1999, the entire disclosure of which is
incorporated herein by reference.
The flavorant is selected such that it is preferably com-
patible with the monomer (i.e., does not adversely affect
polymerization, bond strength, cure properties, or shelf-life).
Preferably, the flavorant is soluble in the monomer compo-
sition at room temperature (i.e., 20-25° C.) so that it may be
readily solubilized in the monomer composition while the
monomer composition is in contact with or passing through
the applicator tip. Furthermore, the flavorant is selected such
that it is preferably compatible with the applicator tip and
any other components that are to be incorporated into or on
the applicator tip.
The flavorant is used in an amount to provide the desired
flavor level to the final polymerized adhesive. For example,
the flavorant can be provided in an amount of, for example,
from about 0.001-25.0% by weight of the adhesive com-
position to be applied. In preferred embodiments, the fla-
vorant is incorporated in an amount of from about
0.2-10.0%, more preferably 0.5-5.0%, of the adhesive com-
position. Of course, additive amounts outside of these ranges
can be readily used depending upon, for example, the
desired result to be achieved and the relative flavoring
strength of the particular flavorant. The amount of flavorant
to be used can be determined by one of ordinary skill in the
art based on the present disclosure using known techniques
without undue experimentation.
Furthermore, in embodiments, the flavorant can be
applied in combination with a delivery substrate to facilitate
incorporation of the flavorant into or onto the applicator tip.
Where used, suitable delivery substrates include, but are not
limited to, waxes, such as carnauba, petroleum and carbo-
wax; gels, such as gelatin, hydroxypropyl methylcellulose,
carboxymethylcellulose, and hydroxy-gels; polyethylene
glycol; polysorbate; agar; povidone; sodium stearate; starch;
powdered sugar; high fructose corn syrup; fructose; glyc-
erin; hydrogenated glucose syrup; sorbitol; mannitol;
sucrose; cellulose acetate phthalate; dextrose; polyvinyl
alcohol; mixtures thereof; and the like.
Still further, it may be desirable to incorporate a preser-
vative into the flavorant, adhesive composition, or applicator
US 6,455,064 B1
15
tip in addition to the flavorant, to help preserve and maintain
the flavoring effect of the flavorant. The need for such a
preservative can depend, for example, upon the concentra-
tion and nature of flavorant, or lack thereof. Suitable pre-
servatives generally include the known food preservatives,
such as sodium benzoate, salt, citric acid, benzoic acid,
sodium nitrite, sodium phosphate, and the like.
Preferably, the flavorant, delivery substrate and/or preser-
vative do not adversely affect the applicator tip, the adhesive
composition and/or the medicament. For example, it is
preferred that these materials do not adversely affect the
aging and/or shelf-life of the materials that the flavorant,
delivery substrate and/or preservative are in contact with
during storage and/or use.
The compositions of the present invention may also
include at least one biocompatible agent effective to reduce
active formaldehyde concentration levels produced during
in vivo biodegradation of the polymer (also referred to
herein as “formaldehyde concentration reducing agents”).
Preferably, this component is a formaldehyde scavenger
compound. Examples of formaldehyde scavenger com-
pounds useful in this invention include sulfites; bisulfites;
mixtures of sulfites and bisulfites; ammonium sulfite salts;
amines; amides; imides; nitrites; carbamates; alcohols; mer-
captans; proteins; mixtures of amines, amides, and proteins;
active methylene compounds such as cyclic ketones and
compounds having a b-dicarbonyl group; and heterocyclic
ring compounds free of a carbonyl group and containing an
NH group, with the ring made up of nitrogen or carbon
atoms, the ring being unsaturated or, when fused to a phenyl
group, being unsaturated or saturated, and the NH group
being bonded to a carbon or a nitrogen atom, which atom is
directly bonded by a double bond to another carbon or
nitrogen atom.
Bisulfites and sulfites useful as the formaldehyde scav-
enger compound in this invention include alkali metal salts
such as lithium, sodium and potassium salts, and ammonium
salts, for example, sodium bisulfite, potassium bisulfite,
lithium bisulfite, ammonium bisulfite, sodium sulfite, potas-
sium sulfite, lithium sulfite, ammonium sulfite, and the like.
Examples of amines useful in this invention include the
aliphatic and aromatic amines such as, for example, aniline,
benzidine, aminopyrimidine, toluene-diamine,
triethylenediamine, diphenylamine, diaminodiphenylamine,
hydrazines and hydrazide.
Suitable proteins include collagen, gelatin, casein, soy-
bean protein, vegetable protein, keratin, and glue. The
preferred protein for use in this invention is casein.
Suitable amides for use in this invention include urea,
cyanamide, acrylamide, benzamide, and acetamide. Urea is
a preferred amide.
Suitable alcohols include phenols, 1,4-butanediol,
d-sorbitol, and polyvinyl alcohol.
Examples of suitable compounds having a b-dicarbonyl
group include malonic acid, acetylacetone, ethylacetone,
acetate, malonamide, diethylmalonate or another malonic
ester.
Preferred cyclic ketones for use in this invention include
cyclohexanone or cyclopentanone.
Examples of suitable heterocyclic compounds for use as
the formaldehyde scavenger in this invention are disclosed,
for example, in U.S. Pat. No. 4,127,382 (Perry) which is
hereby incorporated in its entirety by reference. Such het-
erocyclic compounds include, for example, benzimidazole,
5-methyl benzimidazole, 2-methylbenzimidazole, indole,
pyrrole, 1,2,4-triazole, indoline, benzotriazole, indoline, and
the like.
10
15
20
25
30
35
40
45
50
55
60
65
16
Apreferred formaldehyde scavenger for use in this inven-
tion is sodium bisulfite.
In practicing the present invention, the formaldehyde
concentration reducing agent, e.g., formaldehyde scavenger
compound, is added in an effective amount to the cyanoacry-
late. The “effective amount” is that amount sufficient to
reduce the amount of formaldehyde generated during sub-
sequent in vivo biodegradation of the polymerized
cyanoacrylate. This amount will depend on the type of active
formaldehyde concentration reducing agent, and can be
readily determined without undue experimentation by those
skilled in the art.
The formaldehyde concentration reducing agent may be
used in this invention in either free form or in microencap-
sulated form. Other compositions are exemplified by U.S.
patent application Ser. No. 08/714,288, incorporated by
reference herein in its entirety.
When microencapsulated, the formaldehyde concentra-
tion reducing agent is released from the microcapsule con-
tinuously over a period of time during the in vivo biodeg-
radation of the cyanoacrylate polymer.
For purposes of this invention, the microencapsulated
form of the formaldehyde concentration reducing agent is
preferred because this embodiment prevents or substantially
reduces polymerization of the cyanoacrylate monomer by
the formaldehyde concentration reducing agent, which
increases shelf-life and facilitates handling of the monomer
composition during use.
Microencapsulation of the formaldehyde scavenger can
be achieved by many known microencapsulation techniques.
For example, microencapsulation can be carried out by
dissolving a coating polymer in a volatile solvent, e.g.,
methylene chloride, to a polymer concentration of about 6%
by weight; adding a formaldehyde scavenger compound in
particulate form to the coating polymer/solvent solution
under agitation to yield a scavenger concentration of 18% by
weight; slowly adding a surfactant-containing mineral oil
solution to the polymer solution under rapid agitation;
allowing the volatile solvent to evaporate under agitation;
removing the agitator; separating the solids from the mineral
oil; and washing and drying the microparticles. The size of
the microparticles will range from about 0.001 to about 1000
microns.
The coating polymer for microencapsulating the formal-
dehyde concentration reducing agent should be polymers
which undergo in vivo bioerosion, preferably at rates similar
to or greater than the cyanoacrylate polymer formed by the
monomer, and should have low inherent moisture content.
Such bioerosion can occur as a result of the physical or
chemical breakdown of the encapsulating material, for
example, by the encapsulating material passing from solid to
solute in the presence of body fluids, or by biodegradation
of the encapsulating material by agents present in the body.
Examples of coating materials which can be used to
microencapsulate the formaldehyde concentration reducing
agent include polyesters, such as polyglycolic acid, poly-
lactic acid, poly-1,4-dioxa-2-one, polyoxaltes,
polycarbonates, copolymers of polyglycolic acid and poly-
lactic acid, polycaprolactone, poly-b-hydroxybutyrate,
copolymers of epsilon-caprolactone and delta-valerolactone,
copolymers of epsilon-caprolactone and DL-dilactide, and
polyester hydrogels; polyvinylpyrrolidone; polyamides;
gelatin; albumin; proteins; collagen; poly(orthoesters); poly
(anhydrides); poly(alkyl-2-cyanoacrylates); poly
(dihydropyrans); poly(acetals); poly(phosphazenes); poly
(urethanes); poly(dioxinones); cellulose; and starches.
Examples of surfactants which can be added to the
mineral oil include those commercially available under the
US 6,455,064 B1
17
designations Triton X-100” (octoxynol from Rohm and
Haas), Tween 20”‘ (polysorbate 20 from ICI Americas), and
Tween 80”‘ (polysorbate 80 from ICI Americas).
The composition may also optionally include at least one
thickening agent.
Suitable thickeners include, for example,
polycyanoacrylates, polylactic acid, poly-1,4-dioxa-2-one,
polyoxalates, polyglycolic acid, lactic-glycolic acid
copolymers, polycaprolactone, lactic acid-caprolactone
copolymers, poly-3-hydroxybutyric acid, polyorthoesters,
polyalkyl acrylates, copolymers of alkylacrylate and vinyl
acetate, polyalkyl methacrylates, and copolymers of alkyl
methacrylates and butadiene. Examples of alkyl methacry-
lates and acrylates are poly(2-ethylhexyl methacrylate) and
poly(2-ethylhexyl acrylate), also poly(butylmethacrylate)
and poly(butylacrylate), also copolymers of various acrylate
and methacrylate monomers, such as poly
(butylmethacrylate-co-methylacrylate).
To improve the cohesive strength of adhesives formed
from the compositions of this invention, difuictional mono-
meric cross-linking agents may be added to the monomer
compositions of this invention. Such crosslinking agents are
known. U.S. Pat. No. 3,940,362 to Overhults, which is
hereby incorporated in its entirety by reference, discloses
such cross-linking agents. Examples of suitable crosslinking
agents include alkyl bis(2-cyanoacrylates), triallyl
isocyanurates, alkylene diacrylates, alkylene
dimethacrylates, trimethylol propane triacrylate, and alkyl
bis(2-cyanoacrylates). A catalytic amount of an amine acti-
vated free radical initiator or rate modifier may be added to
initiate polymerization or to modify the rate of polymeriza-
tion of the cyanoacrylate monomer/crosslinking agent blend.
The compositions of this invention may further contain
fibrous reinforcement and colorants, i.e., dyes and pigments.
Examples of suitable fibrous reinforcement include PGA
microfibrils, collagen microfibrils, cellulosic microfibrils,
and olefinic microfibrils. Examples of suitable colorants
include 1-hydroxy-4-[4-methylphenyl-amino]-9,10
anthracenedione (D+C violet No. 2); disodium salt of
6-hydroxy-5-[(4-sulfophenyl)axo]-2-naphthalene-sulfonic
acid (FD+C Yellow No. 6); 9-(o-carboxyphenOyl)-6-
hydroxy-2,4,5,7-tetraiodo-3H-xanthen-3-one, disodium salt,
monohydrate (FD+C Red No. 3); 2-(1,3-dihydro-3-oxo-5-
sulfo-2H-indol-2-ylidene)-2,3-dihydro-3-oxo-1H-indole-5-
sulfonic acid disodium salt (FD+C Blue No. 2); and [phtha-
locyaninato (2-)] copper.
Other compositions that are contemplated by the present
invention are exemplified by U.S. Pat. Nos. 5,624,669;
5,582,834; 5,575,997; 5,514,371; 5,514,372; and 5,259,835;
the disclosures of all of which are hereby incorporated in
their entirety by reference.
EXAMPLE
A sample of 120 microliters of 1000 ppm BAC solution
in methanol was tested for its initiation property with 2-octyl
cyanoacrylate in accordance with the method described
above. The following polymerization times were obtained:
Sample Number Set Time (seconds)
1 109
2 106
3 111
4 121
5 102
10
15
20
25
30
35
40
45
50
55
60
65
18
-continued
Sample Number Set Time (seconds)
101
109
57
126
\DO0\]O\
While the invention has been described with reference to
preferred embodiments, the invention is not limited to the
specific examples given, and other embodiments and modi-
fications can be made by those skilled in the art without
departing from the spirit and scope of the invention.
What is claimed is:
1. A method of delivering a medicament to a patient,
comprising:
applying a pharmaceutically effective amount of a medi-
cament to a tissue of said patient, and
applying a polymerizable monomer composition onto the
medicament,
wherein the medicament is a polymerization initiator or
polymerization rate accelerator and causes polymeriza-
tion of the monomer composition to form a polymeric
adhesive covering on said tissue,
wherein the medicament is selected from the group con-
sisting of antibiotics, antimicrobials, antiseptics,
bacteriocins, bacteriostats, disinfectants, steroids, anti-
fimgal agents, anti-inflammatory agents, antibacterial
agents, antiviral agents, antitumor agents, growth
promoters, and mixtures thereof and
wherein the polymerizable monomer is a 1,1-disubstituted
ethylene monomer.
2. The method of claim 1, wherein the medicament is
crystal violet.
3. The method of claim 1, wherein the medicament is
selected from the group consisting of quaternary ammonium
halides, chlorhexidine sulfate, gentamicin sulfate, hydrogen
peroxide, neomycin sulfate, quinolone thioureas, salts of
silver, copper compounds, sodium hypochlorite,
antioxidants, salts of sulfadiazine, and mixtures thereof.
4. The method of claim 1, wherein the medicament is
selected from the group consisting of quaternary ammonium
halides, salts of sulfadiazine, and salts or complexes of silver
or zinc or copper.
5. The method of claim 4, wherein the medicament is a
quaternary ammonium halide selected from the group con-
sisting of alkylbenzyldimethylammonium chloride with an
alkyl containing 6-18 carbon atoms, its pure components, or
mixtures thereof; and benzethonium chloride.
6. The method of claim 4, wherein the medicament is a
salt of sulfadiazine selected from the group consisting of a
silver salt, a sodium salt, and a zinc salt.
7. The method of claim 4, wherein the medicament is a
zinc compound selected from the group consisting of zinc
salts of cyanoacrylic acid, zinc salts of cyanoacetic acid,
zinc salts of dicyanoglutaric acid, zinc salts of rosin, zinc
oxide, zinc salts of polycyanoacrylic acid, zinc salts of
polyacrylic acid, zinc bacitracin, zinc salicylate, zinc
stearate, zinc citrate, zinc lactate, and mixtures thereof.
8. The method of claim 1, wherein the medicament has a
local pharmaceutical effect on the tissue to which it is
applied.
9. The method of claim 1, wherein the medicament has a
systemic pharmaceutical effect on said patient.
10. The method of claim 9, wherein the medicament is an
anion, participates in radical generation, is an ion pair, or is
a radical.
US 6,455,064 B1
19
11. The method of claim 1, wherein the polymerizable
monomer is an ot-cyanoacrylate.
12. The method of claim 11, wherein the ot-cyanoacrylate
is selected from the group consisting of ethyl, butyl and
octyl ot-cyanoacrylate.
13. The method of claim 11, wherein the medicament is
applied by spraying, brushing, swabbing, dripping, wiping,
or dusting.
14. The method of claim 1, wherein the polymerizable
monomer composition is applied by spraying, brushing,
swabbing, or dripping.
15. The method of claim 1, further comprising applying a
flavorant to said tissue.
16. The method of claim 15, wherein said tissue is oral
tissue or a lip.
17. The method of claim 16, wherein said flavorant is
combined with said medicament.
18. The method of claim 16, wherein said flavorant is
applied in a separate step.
19. The method of claim 16, wherein said flavorant is
applied as a component of said monomer composition.
20. The method of claim 15, wherein the flavorant is
selected from the group consisting of 5-fold orange oil,
anethole, banana distillate, benzaldehyde, clove oil, cold
pressed Valencia orange oil, cold pressed grapefruit oil, cold
pressed lemon oil, cold pressed lime oil, cucumber distillate,
honey distillate, menthol, alkyl salicylates, monosodium
glutamate, spearmint, wintergreen, cinnamon, citrus, cherry,
apple, peppermint, peppermint oil, peppermint spirit,
vanillin, thymol, and ethyl vanillin.
21. The method of claim 1, wherein the method is used to
close or seal a wound.
22. The method of claim 21, wherein the wound is an
internal wound.
23. The method of claim 21, wherein the wound is a
superficial wound.
24. The method of claim 21, further comprising suturing
or stapling said wound before or after applying said medi-
cament.
25. The method of claim 1, wherein the method is used to
treat tissues affected by at least one member selected from
the group consisting of minor cuts, scrapes, irritations,
compromised skin, abrasions, lacerations, burns, sores,
chaffed skin, stomatitis, and surgical wounds.
26. The method of claim 1, wherein the method is used to
dress burns.
27. The method of claim 1, wherein the method is used to
treat stomatitis.
28. The method of claim 1, wherein the tissue comprises
blood vessels.
29. The method of claim 1, wherein the tissue comprises
a cold sore.
30. The method of claim 1, wherein the patient is an
animal.
31. The method of claim 1, wherein the polymerization is
complete in less than 300 seconds at a temperature of 21—25°
C.
32. A kit for delivering a medicament to a patient,
comprising a package containing:
10
15
20
25
30
35
40
45
50
55
20
a first container that contains a polymerizable monomer
composition, and
a second container that contains a medicament, wherein
said medicament is a polymerization initiator or poly-
merization rate accelerator and causes polymerization
of the monomer composition to form a polymeric
adhesive, and
wherein the polymerizable monomer is a 1,1-disubstituted
ethylene monomer.
33. The kit of claim 31, wherein the medicament is
present in a pharmaceutically effective amount for topical
application on tissue.
34. The kit of claim 31, wherein the superficial tissue is
skin.
35. The kit of claim 31, wherein the second container
further contains a material selected from the group consist-
ing of antibiotics, antimicrobials, antiseptics, bacteriocins,
bacteriostats, disinfectants, and mixtures thereof.
36. The kit of claim 32, wherein the polymerizable
monomer is an ot-cyanoacrylate.
37. The kit of claim 36, wherein the ot-cyanoacrylate is
selected from the group consisting of ethyl, butyl and octyl
ot-cyanoacrylate.
38. The kit of claim 36, wherein the medicament is crystal
violet.
39. The kit of claim 36, wherein the medicament is
selected from the group consisting of quaternary ammonium
halides, salts of sulfadiazine, and salts or complexes of silver
or zinc or copper.
40. The kit of claim 39, wherein the medicament is a
quaternary ammonium halide selected from the group con-
sisting of alkylbenzyldimethylammonium chloride with an
alkyl containing 6-18 carbon atoms, its pure components, or
mixtures thereof; and benzethonium chloride.
41. The kit of claim 39, wherein the medicament is a salt
of sulfadiazine selected from the group consisting of a silver
salt, a sodium salt, and a zinc salt.
42. The kit of claim 39, wherein the medicament is a zinc
compound selected from the group consisting of zinc salts of
cyanoacrylic acid, zinc salts of cyanoacetic acid, zinc salts
of dicyanoglutaric acid, zinc salts of rosin, zinc oxide, zinc
salts of polycyanoacrylic acid, zinc salts of polyacrylic acid,
zinc bacitracin, zinc salicylate, zinc stearate, zinc citrate,
zinc lactate, and mixtures thereof.
43. The kit of claim 36, wherein the kit is sterilized.
44. The kit of claim 32, further containing a third con-
tainer that contains a flavorant.
45. The kit of claim 32, wherein at least one of said first
container and said second container also contains a fla-
vorant.
46. The kit of claim 32, wherein the patient is an animal.
47. The kit of claim 32, wherein the polymerizable
monomer polymerizes in less than 300 seconds at a tem-
perature of 21—25° C. when contacted with said medica-
ment.
Coments go here:
- Log in to post comments
