Process for Bonding Substrates or Parts and Systems Including Cyanoacrylate Adhesive and Accelerator Compositions
Process for Bonding Substrates or Parts and Systems Including Cyanoacrylate Adhesive and Accelerator Compositions
US7431793
Company:
Folder:
Year:
Abstract:
An activator composition for accelerating hardening and achieving cure-through-volume of cyanoacrylate adhesives) comprising; (a) one or more compounds selected from the group consisting of :(i) pyrazine; or a pyrazine derivative; said pyrazine derivative being pyrazine substituted with at least one electron-releasing group; (ii) pyridine N oxides substituted with at least one electron-releasing group; or (iii) 2,6 pyridines being pyridines substituted in the 2- and 6-positions by substituents, at least one of the substituents being electron-releasing provided that both substituents are not methyl; and (b) a volatile solvent carrier for the compound.
Type of document:
Language:

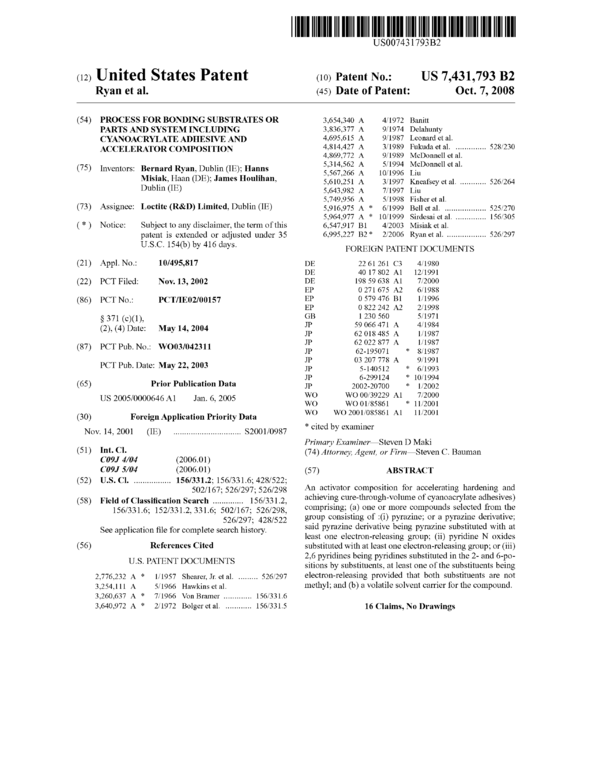

US007431793B2
(12) Ulllted States Patent (10) Patent No.: US 7,431,793 B2
Ryan et al. (45) Date of Patent: Oct. 7, 2008
(54) PROCESS FOR BONDING SUBSTRATES OR 3,654,340 A 4/1972 Banitt
PARTS AND SYSTEM INCLUDING 3,836,377 A 9/1974 Delahunty
CYANOACRYLATE ADHESIVE AND 4,695,615 A 9/1987 Leonard etal.
ACCELERATOR COMPOSITION 4,814,427 A 3/1989 Fukuda et al. ............ .. 528/230
4,869,772 A 9/1989 McDonnell et al.
(75) Inventors: Bernard Ryan Dublin (IE)' Hanns 5314562 A 5/1994 McD0nne11et a1’
_ _ ’ . ’ _ 5,567,266 A 10/1996 Liu
M'5'?‘k= Haan(DE)= James H°“1‘ha“> 5,610,251 A 3/1997 Kneafsey etal. .......... .. 526/264
D11b11I1(1E) 5,643,982 A 7/1997 Liu
. . 5,749,956 A 5/1998 Fisher et al.
(73) Asslgneei Loctite (R&D) Limited, Dub11I1(1E) 5,916,975 A * 6/1999 Bell et al. ................. .. 525/270
5,964,977 A * 10/1999 Sirdesai et al. ............ .. 156/305
( * ) Notice: Subject to any disclaimer, the term of this 6,547,917 B1 4/2003 Misiak et al.
patent is extended or adjusted under 35 6,995,227 B2 * 2/2006 Ryan et al. ................ .. 526/297
U'S'C' 1540’) by 416 days" FOREIGN PATENT DOCUMENTS
(21) Appl. No.: 10/495,817 DE 22 61261 C3 4/1980
DE 4017 802 A1 12/1991
(22) PCT Filed: NOV. 13, 2002 DE 198 59 638 A1 7/2000
EP 0 271675 A2 6/1988
(86) PCT No.: PCT/IE02/00157 EP 0 579 475 B1 1/1995
EP 0 822 242 A2 2/1998
w1- 51322231, 213;:
(2)’ (4) Date: May 14’ 2004 JP 62 018 485 A 1/1987
. JP 62 022 877 A 1/1987
(87) PCT Pub. No.. W003/042311 JP 62495071 , 8/1987
PCTPub. May22,2003 3: 95130;}: A ., 343;;
JP 6-299124 * 10/1994
P1‘l01‘ PllD1lCatl0I1 Data JP 2002_20700 >i< 1/2002
W0 WO 00/39229 A1 7/2000
US 2005/0000646A1 Jan. 6,2005 W0 W001/85861 * 11/2001
(30) Foreign Application Priority Data W0 W0 2001/085861 A1 11/2001
* . .
Nov. 14, 2001 (IE) ............................. .. S2001/0987 “ted by e"am‘ner
Primary Examiner—Steven D Maki
(51) Int CL (74) Attorney, Agent, or Firm—Steven C. Bauman
C09J 4/04 (2006.01)
C09J 5/04 (2006.01) (57) ABSTRACT
(52) U.s. C1. ............... .. 156/331.2; 156/331.6; 428/522; . . . . .
502/167; 526/297; 526/298 An.activator composition for accelerating hardening.and
(58) Field of Classification Search ............ .. 156/331.2, a°h1eVmg °“Ie“hr°“gh‘V°1“me Of °Ya“°a°1'Y1a‘e adhesms)
156/331.6; 152/331.2, 331.6; 502/167; 526/298,
526/297; 428/522
See application file for complete search history.
(56) References Cited
U.S. PATENT DOCUMENTS
2,776,232 A * 1/1957 Shearer, Jr. et al. ....... .. 526/297
3,254,111 A 5/1966 Hawkins et al.
3,260,637 A * 7/1966 Von Bramer ........... .. 156/331.6
3,640,972 A * 2/1972 Bolger et al. .......... .. 156/331.5
comprising; (a) one or more compounds selected from the
group consisting of :(i) pyrazine; or a pyrazine derivative;
said pyrazine derivative being pyrazine substituted with at
least one electron-releasing group; (ii) pyridine N oxides
substituted with at least one electron-releasing group; or (iii)
2,6 pyridines being pyridines substituted in the 2- and 6-po-
sitions by substituents, at least one of the substituents being
electron-releasing provided that both substituents are not
methyl; and (b) a volatile solvent carrier for the compound.
16 Claims, No Drawings
US 7,431,793 B2
1
PROCESS FOR BONDING SUBSTRATES OR
PARTS AND SYSTEM INCLUDING
CYANOACRYLATE ADHESIVE AND
ACCELERATOR COMPOSITION
FIELD OF THE INVENTION
This invention relates to activator compositions, particu-
larly well suited for accelerating the hardening of cyanoacry-
late adhesives. The invention further relates to a process for
the accelerated bonding of substrates using cyanoacrylate
adhesives.
BRIEF DESCRIPTION OF RELATED
TECHNOLOGY
Adhesive compositions based upon cyanoacrylate esters
are well known and have found extensive use, because of their
rapid cure speed, excellent long-term bond strength, and
applicability to a wide variety of substrates. They generally
harden after only a few seconds, after which the joined parts
exhibit at least a certain degree of initial strength.
If the cyanoacrylate (CA) adhesive is conventionally
applied in a relatively thick layer in the joint gap or relatively
large amounts of adhesive are applied so that relatively large
drops of adhesive protrude from between the parts to be
joined, rapid hardening throughout the adhesive may rarely
be achieved, i.e. cure-through-gap or cure-through-volume
(CTV) performance may be unsatisfactory.
With certain substrates, particularly substrates having
acidic surfaces, such as wood or paper, the polymerisation
reaction may be retarded, often times to an unmanageable
extent. Moreover, unless the adhesive is gelled or rendered
thixotropic by appropriate additives to confer such properties,
the wood or paper substrates, due to their porosity, tend to
draw the adhesive out of the joint gap by capillary action
before hardening has taken place in the gap.
Heretofore efforts have been made to accelerate the poly-
merisation of such CA adhesives by means of certain addi-
tives. Addition of accelerators directly to the adhesive formu-
lation is possible to only a very limited extent, however, since
substances having a basic or nucleophilic action, which
would normally bring about a pronounced acceleration of the
polymerisation of the cyanoacrylate adhesive, are generally
used, it is usually at the expense of the storage stability of such
formulations.
Addition of such accelerators shortly before application of
the adhesive results in virtually a two-component (two-part)
system—in other words the adhesive and the accelerator are
stored apar‘t—the accelerator would not normally be mixed
with the adhesive for storage purposes. However, such
method has the disadvantage that the working life is limited
after the activator has been mixed in. In addition, with the
small amounts of activator that are required, the necessary
accuracy of metering and homogeneity of mixing are difficult
to achieve. Moreover, use of such a two-part system is often
seen as cumbersome to the end user, and sometimes only
modestly improves the intended result.
Activators are also used in the form of a dilute solution
which is either applied beforehand onto a substrate such as a
part which is to be bonded, and/ or is applied onto the adhesive
where it is still liquid (before the adhesive has fully cured)
after the substrates have been joined. The solvents used for
such dilute solutions of activators are generally low-boiling
organic solvents, so that they may be readily evaporated,
leaving the activator on the substrate and/or on the adhesive.
10
15
20
25
30
35
40
45
50
55
60
65
2
Japanese Patent Application Nos. J P-A-62 022 877, JP-A-
03 207 778 and JP-59-66471 propose the use of solutions of
various amines in solution as accelerators for cyanoacrylate
adhesives. U.S. Pat. No. 3,260,637 of von Brarner discloses
the use of a range of organic amines (excluding primary
amines) as accelerators for cyanoacrylate adhesives, particu-
larly for use on metallic and non-metallic substrates.
N,N-dimethyl-p-toluidine has been widely used as an
accelerator for the accelerated hardening of cyanoacrylate
adhesives. This chemical provides a short duration of the
surface activation, which does not permit long waiting times
between application of the accelerator solution beforehand to
the substrates to be bonded and the subsequent bonding pro-
cess. In addition, the use of N,N-dimethyl-p-toluidine in
some countries oftentimes involves rigorous regulatory label-
ling requirements.
Basicity of an accelerator substance is not a sufficient
criterion for identifying solutions which are acceptable in
practice in terms of application technology. Many substances,
such as alkylamines, 1,2-di-(4-pyridyl-ethane), 4,4'-dipy-
ridyl disulfide, 3-(3-hydroxypropyl)pyridine, 1,2-bis(diphe-
nylphosphino)-ethane, pyridazine, methylpyridazine or 4,4'-
dipyridyl, are so basic or nucleophilic that spontaneous
superficial hardening takes place at the adhesive interface
(shock hardening) before the activator is able to initiate poly-
merisation throughout the liquid adhesive (usually a drop or
layer) by dispersion processes such as by convection and
diffusion. The result is that an often cloudy polymerisation
occurs at the surface only. With other compounds, such as
oxazoles, the basicity is evidently too low, and the hardening
is often too slow for practical purposes.
German Patent DE-A-22 61 261 proposes accelerator sub-
stances containing the structural element —N:C—S—,
including 2,4-dimethylthiazole. U.S. Pat. No. 5,567,266
(Liu) and U.S. Pat. No. 5,643,982 (Liu) describe accelerator
compositions comprising amine compounds. EP 0 822 242
and U.S. Pat. No. 5,749,956 (Fisher et al.) describe non-ozone
depleting non-flamrnable co-solvent useful for carrying inter
alia accelerators.
European Patent Publication No. 0 271 675 A2 of Three
Bond Co. Ltd. describes a primer for CA adhesive for use in
bonding non-polar or highly crystallized resins such as poly-
olefins, polyethyleneterephthalates, nylons, fluorine-con-
taining resins, soft PVC films and the like which are notorious
as being ordinarily difficult to bond. The primer comprises
(A) a compound selected from the group consisting of ben-
zene ring compounds having aldehyde groups and nitrogen or
oxygen atom-containing heterocyclic compounds having
aldehyde groups (such as 2-pyridine carboxylaldehyde, 2,6-
pyridine carboxylaldehyde and pyrrole 2-carboxylaldehyde),
and (B) an organic amine compound. The EP ’675 publication
states that in bonding non-polar or highly crystallized resins
using a CA adhesive the primer instantaneously exhibits a
high bonding strength at ambient temperature by simply
applying such primer onto a surface of one of the resins,
applying the CA adhesive onto a surface of the other resin and
bringing both surfaces into contact with each other, thus
achieving “zero gap” and an instantaneous high bonding
strength.
British Patent Specification No. 1 230 560 of International
Chemical Company Limited (ICC) describes CA adhesive
compositions containing certain substituted heterocyclic
compounds as accelerators. The compositions may be pre-
sented in a two-part form, the first part comprising the CA
adhesive and the second part comprising at least one of the
substituted heterocyclic compounds, preferably in solution in
an organic solvent. In the compositions in which the hetero-
US 7,431,793 B2
3
cyclic compound is an iminoethylene-substituted triazine or
pyrimido-pyrimidine, the heterocyclic compound is invari-
ably present in one part of a two-part composition because
iminoethylene-substituted triazines and pyrimido-pyrim-
idines accelerate the polymerisation so rapidly they must be
kept apart from the CA composition before use.
Japanese Patent Abstract Publication No. 62018485 of
Alpha Giken KK also describes a primer for a CA adhesive
and is not concerned with an activator for good CTV perfor-
mance.
Activator solutions are often applied by spraying. There is
a demand for activator solutions which can be applied in
excess volumes (e. g. as drops) onto an adhesive already
present on a substrate (e.g. in the form of a bead or fillet).
Aliphatic hydrocarbons such as heptane are often used as a
carrier for CA activators.
Notwithstanding the state-of-the-art, it would be desirable
to provide new activators and combinations thereof with dif-
ferent physical properties from the activator substances than
those known heretofore. In addition, it would be desirable for
such activators to have a pronounced accelerating action on
the cyanoacrylate adhesive and low volatility. Such physical
properties will allow for the application of the activators
either onto the substrate to be bonded prior to application of
the cyanoacrylate adhesive or after application of the
cyanoacrylate adhesive onto the substrate to be bonded as an
overspray. It would also be desirable to find chemicals useful
as activators for cyanoacrylate adhesives which are subject to
regulatory labelling requirements less rigorous than those
currently in place for N,N-dimethyl-p-toluidine.
SUMMARY OF THE INVENTION
According to one aspect, the present invention provides a
composition (in particular suitable for use as an accelerator
composition for CTV of cyanoacrylate adhesives) compris-
ing:
(a) one or more compounds selected from the group con-
sisting of:
(i) pyrazine; or a pyrazine derivative;
said pyrazine derivative being pyrazine substituted with
at least one electron-releasing group;
(ii) pyridine N oxides substituted with at least one electron-
releasing group; or
(iii) 2,6 pyridines being pyridines substituted in the 2-and
6-positions by substituents, at least one of the substitu-
ents being electron-releasing provided that both sub-
stituents are not methyl; and
(b) a volatile solvent carrier for the compound.
In the groups (i) to (iii) above (the groups (i) to (iii) are used
for convenience and mixtures of compounds within a desig-
nated group and/or between groups is encompassed by the
use of the phrase “at least one”) the electron releasing effect
of the sub stituent is measured relative to hydro gen—in other
words a substituent which is considered more electron-releas-
ing than a hydrogen substituent is desired. Usually the elec-
tron-releasing effect would be manifested in a net increase in
the base strength of the substituted compound compared to
the corresponding Substituted compound. Such a net increase
in the base strength of the substituted compound compared to
the corresponding unsubstituted compound is desirable for all
compounds of groups (i) to (iii) above.
This base strength effect is particularly desirable for the
substituted pyrazines of group (i) and the pyridine N-oxides
of group (ii).
A net increase in the base strength of the substituted com-
pound compared to the corresponding unsubstituted com-
10
15
20
25
30
35
40
45
50
55
60
65
4
pound is seen as desirable also for the 2,6 pyridines of group
(iii). In the group (iii) compounds the proximity of the sub-
stituents of these compounds to the N atom of the heterocycle
also has an effect on the nucleophilicity of the (N atom) of the
compounds which is thought to occur due to steric hindrance
effects. In this respect it is desirable that the compounds of
group (iii) are not substituted in both the 2-and 6-position by
methyl. The present inventors have found that such substitu-
tion (for example in lutidine-2,6-dimethyl pyridine) results in
a compound which is too reactive toward cyanoacrylate (both
substituents being electron-releasing and together not provid-
ing sufficient steric hindrance) and does not achieve the desir-
able effects set out above. Accordingly at least one of the
substituents in the 2- or 6-positions should not be methyl and
desirably at least one of those substituents is more sterically
hindering toward the N atom of the heterocycle than a methyl
group. It may be that both substituents are each more steri-
cally hindering than a methyl group would be in the 2-and
6-positions.
The compounds of groups (i) to (iii) may be additionally
substituted with one or more other groups such as one or more
electron-withdrawing and/ or electron-releasing groups and/
or groups that are neither electron-withdrawing nor electron-
releasing. Overall it is desirable that the net effect of all
substituents is to increase the base strength of the substituted
compound as compared to the unsubstituted one.
In the case of pyrazines where there are two N heteroatoms
it is desirable that each N heteroatom is sterically hindered
each desirably by two N heteroatom adjacent groups particu-
larly where there are two electron-releasing groups. Desir-
ably both groups are electron-releasing groups. In this respect
N heteroatom adjacent position is used to mean the substitu-
ent is on a carbon atom of the heterocycle which is directly
bonded to a N heteroatom of the heterocycle.
In the case of pyridine, the substituent(s) is (are) desirably
sufficiently bulky to decrease the nucleophilicity of the N
heteroatom(s) of the heterocycle. In other words the substitu-
ents should be such as to make the compound less reactive (as
accelerator) toward a cyanoacrylate adhesive. Less reactive is
used herein in the comparative sense against the parent pyri-
dine compound.
Preferably the electron releasing substituent(s) are selected
from one or more of straight chain, branched chain, or cyclic
(each optionally substituted) alkyl groups particularly where
there are two electron-releasing . Typically up to 40 carbon
atoms may be present in the substituent though this upper
limit is not seen as critical in at least as so far as electron-
releasing effects are to be considered. Typical substituents
such as methyl, ethyl, propyl (in particular n-propyl or iso
propyl), butyl (in particular n-butyl, iso butyl, tert butyl),
pentyl such as n-pentyl or cyclopentyl, or hexyl such as cyclo-
hexyl may be employed.
These chains may themselves be further substituted (pro-
vided that the substitution results in an electron-releasing
substituent). The additional substituent(s) may be one or
more substituents selected from the group consisting of:
halo, CR:CR1R2, CF3, CCl3, OC(O)R, COOR, COR,
OR, SR, CONRIRZ, NO2, NO3, SOR, SO2NR2,
NRSO2R, SO2R3, SO3R3, PO(OR3)2 and optionally
substituted C6-C20 aryl, or aryloxy, CSOR3 , COONR32,
NRCOOR, NRCOR, N:N—R3, OOR3, SSR3, OC(O)
OR3, N(OR3)2, P(OR3)2, SOR3, OSR3, wherein R, R1
and R2 (which may be the same or different) are H,
optionally substituted C1 -C10 alkyl, or optionally substi-
tuted C6-Czo aryl, and R3 is optionally substituted
C1-C10 alkyl, or optionally substituted C6-C20 aryl. Halo
includes chloro, bromo, fluoro and iodo. Pseudohalo-
US 7,431,793 B2
5
radicals such as CN, SCN, OCN, NCO, NCS are also
included within the group of useful substituents.
Some electron-withdrawing groups which can be
employed for further substitution directly on the heterocycle
include hydroxy, methoxy, methanol, thio and thiol.
Specific examples of compounds of groups (i) to (iii)
include compounds utilised in the worked examples below.
Mixtures of activators can be used both from within those
of the present invention and with those of the co-pending
International application no. PCT/IE 01/00063 (filed on 11
May 2001 with the applicant Loctite (R&D) Limited) the
entire contents of which are incorporated herein by reference.
For example an intelligent selection of activators would be to
combine an activator with good pre-spray properties (such as
4-methyl pyridine-N-oxide from the present invention or
from 2,2‘ dipyridyl disulphide or 5 -nitroquinoline (from PCT/
IE 01/00063) with some activators (for example the pyrazines
that have good post spray properties.
Specific examples include 6-methyl-2-pyridine methanol
or 2,3-dimethyl or 2,5 dimethyl or 2-methyl-3-n-propyl or 2
methoxy 3 methyl substituted pyrazines separately mixed
with 2,2‘ dipyridyl disulphide or 5-nitroquinoline (from PCT/
IE 01/00063) or mixed with 4-methyl pyridine n-oxide
described herein. Also within the ambit of the present inven-
tion are mixtures containing more than one activator with
good post spray properties with more than one activator with
good pre spray properties.
The compositions of the present invention may addition-
ally comprise a component:
(c) an organic compound containing the structural element,
—N:C—S—S—.
According to a special feature, the present invention pro-
vides an activator composition for the accelerated hardening
of cyanoacrylate adhesives, wherein the activator comprises a
mixture of an aromatic heterocyclic compound according to
the composition of the invention described above and an
organic compound having the structural element, —N:C—
S—S—.
According to a further feature, the present invention pro-
vides an activator composition for the accelerated hardening
of cyanoacrylate adhesives, wherein the activator comprises a
mixture of a composition comprising components (a), (b) and
(c) above where the compound of group (c) is an organic
compound having the structural element, —N:C—S—S—,
more particularly the structural element, —N:C—S—S—
C:N—, more especially —N:C—S—S—C:N—
wherein the N:C and C:N double bonds are parts of aro-
matic heterocyclic rings.
The activator compositions of the present invention are for
the accelerated hardening of a cyanoacrylate adhesive
throughout the adhesive. The compositions of the invention
are particularly directed to good CTV performance, in par-
ticular accelerated hardening throughout the adhesive, in
drops of adhesive or relatively large layers of adhesive in a
joint gap. A joint gap is a gap between two surfaces (often
each surface is on a separate substrate on a separate substrate
though surfaces on the same substrate are also of interest)
which are spaced apart from each other. In this respect the
term “spaced apart” is used to define a relationship between
substrates which defines the gap between surfaces as larger
than the “zero gap” achieved when two substrate surfaces are
in contact. The term zero gap is often employed to refer to the
direct contact between surfaces allowing for irregularities/
imperfections on the surface which mean that perfect contact
is not achieved. In general (and in particular for successful
CTV through a bulk of cyanoacrylate) a gap having a greater
width than 10 microns is of interest. The depth of the adhesive
10
15
20
25
30
35
40
45
50
55
60
65
6
drop or layer perpendicular to the substrate surface is suitably
in the range 0.5 mm -2 mm, particularly 0.75 mm -1.25 mm.
In the said organic compound containing the structural
element —N:C—S—S—, the N:C double bond may
optionally be part of an aromatic system, which may suitably
be monocyclic, bicyclic or tricyclic. For example, the N:C
double bond may suitably be part of an aromatic heterocyclic
ring having one or more N hetero atoms in the ring, optionally
with one or more other hetero atoms selected from S and O.
The heterocyclic ring may be substituted.
Desirably the said organic compound contains the struc-
tural element —N:C—S—S—C:N—, in which case both
the N:C double bond and the C:N double bond may
optionally be part of aromatic systems as described above,
suitably two similar aromatic systems. More desirably the
said organic compound is selected from dibenzothiazyl dis-
ulfide, 6,6‘-dithiodinicotinic acid, 2,2‘-dipyridyl disulfide,
and bis(4-t-butyl-l-isopropyl-2-imidazolyl) disulfide. Of
course, combinations of these organic compounds may also
be used. Organic compounds having structural element
—N:C—S—S—, which are useful as accelerators for
accelerating the curing of CA adhesives if diluted in a solu-
tion, are described in WO 00/39229 and the corresponding
U.S. patent of Henkel KGaA, the entire contents of both of
which are incorporated herein by reference.
In a further aspect the present invention also relates to the
use of at least one aromatic heterocyclic compound having at
least one N hetero atom in the ring(s) and substituted on the
ring(s) with at least one electron-releasing group in the manu-
facture of a cure through volume accelerator composition for
cyanoacrylate adhesives.
In this further aspect said at least one aromatic heterocyclic
compound may be a member selected from the group con-
sisting of pyridines, quinolines, pyrimidines and pyrazines
substituted on the heterocycle ring or at least one of the
heterocycle rings with at least one electron-releasing group.
An aromatic heterocyclic compound may suitably be
monocyclic, bicyclic or tricyclic. The N hetero atoms(s) may
be present in one or more of the rings. Two or more hetero-
cyclic rings may be fused, or a heterocyclic ring may be fused
to one or more carbocyclic rings. A heterocyclic ring may
suitably be a 5- or 6-membered ring and may suitably have
one or two N-atoms in the ring. A 6-membered heterocyclic
ring is particularly suitable. In the case of two fused hetero-
cyclic rings, the total number of N-atoms is suitably not more
than three. The aromatic heterocyclic compounds are suitably
substituted on the ring carbon atoms.A carbocyclic ring fused
to a heterocyclic ring may suitably have 6 carbon atoms
and/or may be an aromatic ring. A compound comprising a
heterocyclic ring fused to a carbocyclic ring may be substi-
tuted by electron-withdrawing group(s) on either or both of
the heterocyclic and carbocyclic rings.
In the various aspects of the invention described above the
number of electron-releasing group(s) (which may be the
same or different) may be from 1 to 3 groups on the ring orper
ring, for example 1 or 2 groups on the ring or per ring.
The criterion that the electron-releasing group increases
the base strength of the substituted compound compared to
the corresponding unsubstituted compound may be deter-
mined by pKa measurement in water under standard condi-
tions (e.g. 25° C. and zero ionic strength) by conventional
means or using a software package which calculates pKa for
the reaction of the positively charged protonated base BH+
with water as indicated in the reaction such as “ACD/pKa
Calculator” available from Advanced Chemistry Develop-
ment, 133 Richmond Street West, Suite 605, Toronto, ON
N5H 2LS, Canada. An increase in base strength is indicated
US 7,431,793 B2
7
by an increase in pKa value. All of the quoted pKa values were
calculated using the aforementioned ACD software.
Ka
L‘ B +
(9
BH e
+ H20 H30
As above the heterocyclic compound substituted with elec-
tron-releasing groups may also be substituted on the ring with
one or more electron-withdrawing groups. Again it is desir-
able that overall the base strength is increased compared to
the corresponding unsubstituted compound.
According to a further aspect, the present invention
includes the use of a composition as defined above for the
accelerated hardening of a cyanoacrylate adhesive. The com-
position may be applied to a substrate before application of
the cyanoacrylate adhesive thereto, and/or the composition
may be applied to the cyanoacrylate adhesive after applica-
tion of the adhesive to a substrate.
According to a further aspect, the present invention pro-
vides an adhesive system comprising a cyanoacrylate adhe-
sive together with a composition as defined above. Suitably,
the composition as defined above is held separately from (i.e.
does not contact) the adhesive prior to application on a sub-
strate.
According to another aspect, the present invention pro-
vides a process for the bonding of substrates or parts, char-
acterised by either of the following series of steps:
(a) dispensing an activator composition as defined above
onto at least one surface of the substrates or parts to be
joined;
(b) optionally exposing solvent or other liquid vehicle in
the activator composition to air, optionally with heating
and/or with the aid of a fan;
(c) optionally holding the substrate or part having the acti-
vator composition thereon for a retention or shipping
period,
(d) applying a cyanoacrylate adhesive to at least one sub-
strate or part;
(e) joining the substrates or parts, optionally with manual
or mechanical fixing,
and
(f) optionally subsequently dispensing the activator com-
position onto adhesive exposed from a joint gap;
or
(i) applying a cyanoacrylate adhesive onto at least one
surface of the substrates or parts to be joined;
(ii) joining the substrates or parts, optionally with manual
or mechanical fixing;
(iii) dispensing an activator composition as defined above
onto the adhesive before or after the step of joining the
substrates or parts,
and
(iv) optionally exposing solvent or other liquid vehicle in
the activator composition to air, optionally with heating
and/or with the aid of a fan.
Suitably the retention or shipping period in step (c) may be
in the range from several minutes to several days, for example
from two minutes to forty-eight hours. Optionally the activa-
tor composition may be applied onto parts prior to their ship-
ping, forwarding or delivery to an end-user, customer or con-
tractor.
The present invention includes a bonded assembly of sub-
strates or parts bonded by a process as defined above. The
10
15
20
25
30
35
40
45
50
55
60
65
8
present invention also includes as an article of commerce a
substrate or part having a composition as defined above
applied thereto.
According to another aspect, the present invention pro-
vides an activator composition wherein component (b) the
volatile organic solvent is a solvent mixture which comprises
a volatile hydrocarbon and a cyclic ketone. Cyclic ketones as
co-solvents would be expected to achieve better results in
reducing the “halo effect” discussed in co-pending applica-
tion no. PCT/ lE01/ 00063 than linear ketones such as acetone,
butanone, pentanone, hexanone, 4-methyl-2-pentanone, or
octanone; than cyclic ethers such as dioxane or tetrahydrofu-
ran; or than adhesive-miscible solvents such as ethyl acetate.
Suitably, the cyclic ketone is present in an amount of up to
about 15%, especially up to about 12%, particularly up to
about 10%, by weight of the solvent mixture. If an amount
substantially greater than 10%, and particularly greater than
15% is used, there may be a risk that a plastic substrate will be
attacked. Desirably, the cyclic ketone is present in an amount
of at least about 2.5% by weight of the solvent mixture. Below
this amount the reduction in the “halo effect” may not be
sufficient for full visual satisfaction. Preferably, the cyclic
ketone is present in an amount of at least about 3% by weight
of the solvent mixture. At or above this level the presence of
cyclic ketone is seen to be beneficial. Desirably, the cyclic
ketone is present in an amount in the range of 3% to 7.5% by
weight of the solvent mixture, particularly an amount in the
range of 4% to 7% by weight of the solvent mixture.
A cyclic ketone may suitably be monocyclic or bicyclic.
Suitably the cyclic ketone is an optionally-substituted
cyclic ketone, desirably an alicyclic ketone, having 3-10 car-
bon atoms in the ring. A substituted cyclic ketone maybe
mono- or di-substituted on the ring with C1-C5 alkyl, more
particularly C1-C2 alkyl.
One particular example of suitable cyclic ketone is cyclo-
hexanone. Other examples include cyclobutanone, cyclopen-
tanone, cycloheptanone and 2-methyl cyclopentanone.
Examples of bicyclic ketones include 2-norbornanone, bicy-
clo[3.2.1]octan-2-one and bicyclo[2.2.2] octanone.
Desirably, the volatile hydrocarbon is an aliphatic hydro-
carbon. Suitably, the volatile aliphatic hydrocarbon may have
from 4 to 10 carbon atoms, particularly from 5 to 8 carbon
atoms, and may be straight chain, branched or cyclic. One
particular example of a suitable hydrocarbon is n-heptane.
In one aspect, the present invention relates to use of an
activator composition as defined above for the accelerated
hardening of a cyanoacrylate adhesive, particularly when the
activator composition is applied to the cyanoacrylate adhe-
sive after application of the adhesive to a substrate.
In an activator composition for the accelerated hardening
of cyanoacrylate adhesives, the activator may suitably com-
prise a member selected from the group consisting of:
According to one aspect, the present invention includes the
use of an activator composition as defined above for the
accelerated hardening of a cyanoacrylate adhesive. The com-
position may be applied to a substrate before application of
the cyanoacrylate adhesive thereto, but more suitably the
composition is applied to the cyanoacrylate adhesive after
application of the adhesive to a substrate.
According to a further aspect, the present invention pro-
vides an adhesive system comprising a cyanoacrylate adhe-
sive together with an activator composition as defined above.
Suitably, the activator composition as defined above is held
separately from the adhesive prior to application on a sub-
strate.
US 7,431,793 B2
9
According to another aspect, the present invention pro-
vides a process for the bonding of substrates or parts, char-
acterised by the following series of steps:
(i) applying a cyanoacrylate adhesive onto at least one
surface of the substrates or parts to be joined;
(ii) joining the substrates or parts, optionally with manual
or mechanical fixing;
(iii) dispensing an activator composition comprising a
solution of one or more activators in a solvent mixture
which comprises a volatile hydrocarbon and a cyclic
ketone onto the adhesive before or after the step of
joining the substrates or parts,
and
(iv) optionally exposing the solvent mixture in the activator
composition to air, optionally with heating or with the
aid of a fan.
The process of the invention is particularly advantageous
when at least one of the substrates has a surface of a dark
colour or is transparent and/ or at least one of the substrates is
of a plastics material. However the invention is also useful
with substrates of other materials such as cardboard, paper, or
wood, particularly if the surface is of a dark colour.
The present invention includes a bonded assembly of sub-
strates or parts bonded by a process as defined above.
Desirably, an activator composition comprises an amount
of activator effective to accelerate hardening of a cyanoacry-
late adhesive, the activator being carried in a suitable solvent
mixture in accordance with the invention.
The solutions of the activator(s) may suitably contain the
activator compound(s) in concentrations of from 0.01 to 10 g
per 100 ml of solvent mixture; for example, from 0.05 to 5 g
of activator substance are dissolved per 100 ml of solvent
mixture.
Various conventional organic solvents are suitable as the
hydrocarbon solvent (in the solvent mixture) for the
activator(s) according to this aspect of the present invention,
provided they have a sufficiently high volatility. Desirably,
the boiling point of the solvent is below about 120° C., suit-
ably below about 100° C., at ambient pressure. Although
aromatic solvents such as toluene or xylene may be used, the
hydrocarbon solvent is desirably an aliphatic hydrocarbon.
Suitable solvents include specialised boiling point gasolines,
but especially n-heptane, n-hexane, n-pentane, octane, cyclo-
hexane, cyclopentane, methyl cyclopentane, methyl cyclo-
hexane and isomers of them like isooctane, methylhexanes,
methylpentanes, 2,2-dimethyl butane (neohexane), or mix-
tures thereof, as well as petroleum benzines and ligroin.
DETAILED DESCRIPTION OF THE INVENTION
An allyl group may be straight-chained, branched or cyclic
and may be unsaturated, i.e. the term alkyl as used herein
includes alkenyl and alkynyl. The heterocycle may be substi-
tuted with one or more alkyl or substituted alkyl groups that
may be the same or different provided that at least one of the
alkyl or substituted alkyl groups is electron releasing.
An optionally substituted alkyl group may be substituted
with one or more of the following:
halo, CR:CR1R2, CF3, CCI3, OC(O)R, COOR, COR,
OR, SR, CONRIRZ, NO2, NO3, SOR, SO2NR2,
NRSO2R, SO2R3, SO3R3, PO(OR3)2 and optionally
substituted C6-C20 aryl, , or aryloxy, CSOR3,
COONR32, NRCOOR, NRCOR, N:N—R3, OOR3,
SSR3, OC(O)OR3, N(OR3)2, P(OR3)2, SOR3, OSR3,
wherein R, R1 and R2 (which may be the same or differ-
ent) are H, optionally substituted C1-C10 alkyl, or
10
15
20
25
30
35
40
45
50
55
60
65
10
optionally substituted C6-C20 aryl, and R3 is optionally
substituted C1-C10 alkyl, or optionally substituted
C6-C20 aryl. Halo includes chloro, bromo, fluoro and
iodo. Pseudohalo-radicals such as CN, SCN, OCN,
NCO, NCS are also included within the group of useful
substituents.
With the exceptions mentioned below, some electron-with-
drawing groups which can be employed for further substitu-
tion direcltly on the heterocycle include OH, OR3, SH, SR3,
CR:CR R2 and aryl, aryloxy or thioaryl.
In the case of substitution of pyridine N oxide in the 4
position the groups OH, OR3, F, CR:CR1R2 and aryl or
aryloxy cause an increase in pKa. Similarly substitution of
pyridine in the 4 position with OR3, CR:CR1R2 , aryl or
aryloxy cause an increase in pKa. The former and latter sets of
groups may therefore be considered as electron releasing
(within the scope of the definition of electron releasing
described previously) in the respective cases of 4 substituted
pyridine N oxide and 4 substituted pyridine . Substitution of
pyridine N oxide in the 3 position with hydroxy or alkoxy also
causes an increase in the pKa compared to pyridine N oxide
In an organic compound containing the structural element
—N:C—S—S—, in which the N:C double bond is part of
a heterocyclic ring, the heterocyclic ring may be substituted
for example with optionally substituted C1 -C10 alkyl, option-
ally substituted C1-C10 alkoxy, optionally substituted C1-C10
alkoxyalkyl, halo, CN, CF3, COOR, COR, OR, SR,
CONRIRZ, NO2, SOR, SO2R3, SO3R3, PO(OR3)2 and
optionally substituted C6-C20 aryl or aryloxy, CSOR3,
COONR32, NRCOOR, N:N—R3, OOR3, SSR3, OOCOR3,
NOR32, ON(COR3)2, S-aryl, NR32, SH, OH, SiR33, Si
(OR3)3, OSiR33, OSi(OR3)3, B(OR3)2, P(OR3)2, SOR3,
OSR3, wherein R,R1 and R2 (which may be the same or
different) are H, optionally substituted C1-C10 alkyl, or
optionally substituted C6-C20 aryl, and R3 (which may be the
same or different) is optionally substituted C1-C10 alkyl, or
optionally substituted C6-C20 aryl.
Desirably, the activator(s) are dissolved in readily volatile
organic solvents, such as hydrocarbons, carboxylic acid
esters, ketones, ethers or halogenated hydrocarbons and car-
bonic acid esters or acetals or ketals. The solutions of the
activator(s) may suitably contain the activator compound(s)
in concentrations of from 0.01 to 10 g per 100 ml of solvent;
for example, from 0.05 to 5 g of activator substance are
dissolved per 100 ml of solvent.
When the activator composition contains a mixture of two
activator compounds, the respective amounts of the activator
compounds may vary and are only limited by respective
amounts which will no longer be effective for the desired
combination of properties. More particularly, when the acti-
vator composition contains a mixture of an aromatic hetero-
cyclic compound substituted with at least one electron-with-
drawing group and an organic compound having the
structural element —N:C—S—S—, the activator com-
pounds may suitably be present in amounts of about 0.1% to
about 10% by weight of the said aromatic heterocyclic com-
pound and about 0.01% to about 5% by weight of the said
organic compound, more particularly about 0.05% to about
1%, of the said organic compound (c), based on the total
weight of the activator composition.
Various conventional organic solvents are suitable as sol-
vents for the activator(s) according to the present invention,
provided they have a sufficiently high volatility. Desirably,
the boiling point of the solvent is below about 120° C., suit-
ably below about 100° C., at ambient pressure. Suitable sol-
vents include specialised boiling point gasolines, but espe-
cially n-heptane, n-bromopropane, alcohols, for example
US 7,431,793 B2
11
isopropyl alcohol, alkyl esters of lower carboxylic acids, for
example ethyl acetate, isopropyl acetate, butyl acetate,
ketones, such as acetone, methyl isobutyl ketone and methyl
ethyl ketone. Also suitable are ether solvents, ether esters or
cyclic ethers, such as, especially, tetrahydrofuran. In the case
of sparingly soluble activators, chlorinated hydrocarbons,
such as dichloromethane or trichloromethane (chloroform),
may also be used.
The activator compositions according to the present inven-
tion are suitable for the accelerated hardening of conventional
cyanoacrylate adhesives which contain as the fundamental
constituent one or more cyanoacrylic acid esters, suitably
with inhibitors of free-radical polymerisation, inhibitors of
anionic polymerisation and, optionally, conventional auxil-
iary substances employed in such adhesive systems, like fluo-
rescence markers.
The activator compositions of the invention may use a
combination of compounds from within any of the groups (i)
to (iii). The particular electron-releasing group to be
employed in any end use application can be selected for its
effect on the activating ability of the activator. In particular
the activity of the compound can be “tuned” by appropriate
substitutions—either on the electron withdrawing group
itself or by one or more additional substituents on the hetero-
cycle. For instance electron-withdrawing groups may be
employed if a particular electron-releasing group at a certain
position on the heterocycle proves too activating for an end
use. Similarly the position of the substitution(s) can be varied
as appropriate.
The cyanoacrylic acid esters used in the adhesives are in the
main one or more esters of 2-cyanoacrylic acid. Such esters
correspond to the following general formula:
H2C:C(CN)—CO—O—R5.
In that formula, R5 represents an alkyl, alkenyl, cycloalkyl,
aryl, alkoxyalkyl, aralkyl or haloalkyl or other suitable group,
especially a methyl, ethyl, n-propyl, isopropyl, n-butyl,
isobutyl, pentyl, hexyl, allyl, methallyl, crotyl, propargyl,
cyclohexyl, benzyl, phenyl, cresyl, 2-chloroethyl, 3-chloro-
propyl, 2-chlorobutyl, trifluoroethyl, 2-methoxyethyl,
3-methoxybutyl or 2-ethoxyethyl group. The above-men-
tioned cyanoacrylates are known to a person skilled in the art
of adhesives, see Ullmann’s Encyclopaedia of Industrial
Chemistry, Volume A1, p. 240, Verlag Chemie Weinheim
(1985) and U.S. Pat. Nos. 3,254,1 11 and 3,654,340. Preferred
monomers are the allyl, methoxyethyl, ethoxyethyl, methyl,
ethyl, propyl, isopropyl or butyl esters of 2-cyanoacrylic acid.
The monocyanoacrylic acid esters represent the largest pro-
portion by weight of the polymerisable monomers in the
adhesive.
The mentioned cyanoacrylic acid esters may suitably be
present in the adhesives in amounts of from 99.99 to 90 wt. %.
Preference is given to cyanoacrylic acid esters the alcohol
radical of which is derived from alcohols having from 1 to 10
carbon atoms, which may also be cyclic, branched or perflu-
orinated.
The cyanoacrylate adhesives according to the present
invention may also contain an inhibitor of free-radical poly-
merisation. Such inhibitors are, for example, hydroquinone,
p-methoxyphenol, but also sterically-hindered phenols, phe-
nothiazine and the like.
The cyanoacrylate adhesives according to the present
invention may also contain thickeners as further auxiliary
substances. That is desirable especially when there are to be
bonded porous materials which otherwise readily absorb the
low viscosity adhesive. Many types of polymer may be used
as thickeners, such as polymethyl methacrylate, other meth-
5
10
15
20
25
30
35
40
45
50
55
60
65
12
acrylate copolymers, acrylic rubber, cellulose derivatives,
polyvinyl acetate or polyalphacyanoacrylate. A usual amount
of thickener is generally about 10 wt. % or less, based on the
total adhesive. In addition to or instead of the thickeners, the
cyanoacrylate adhesives according to the present invention
may also contain reinforcing agents. Examples of such rein-
forcing agents are acrylic elastomers, acrylonitrile copoly-
mers, elastomers or fluoroelastomers. Moreover, inorganic
additives may also be used, for example silicates, thixotropic
agents having a large surface area, which may be coated with
polydialkylsiloxanes.
The cyanoacrylate adhesives according to the present
invention may also contain substances for increasing the ther-
mal stability thereof. There may be used for that purpose, for
example, the sulfur compounds mentioned in European
Patent specification No. 579 476.
In addition to or instead of the mentioned additives, the
cyanoacrylate adhesives according to the present invention
may also contain plasticisers. These serve to protect the
resulting adhesive bond from brittleness. Such plasticisers
are, for example, C1-C10 alkyl esters of dibasic acids, espe-
cially of sebacic acid, phthalic acid or malonic acid as well as
esters of ethylene glycol, glycol or citric acid. Other plasti-
cisers are diaryl ethers and polyurethanes and the like. Fur-
thermore, the adhesive preparations according to the present
invention may also contain colourings, pigments, aromatic
substances (fragrances), extenders and the like, as well as
fluorescing additives. Reference is directed to U.S. Pat. No.
5,749,956 (Fisher et al.), U.S. Pat. No. 4,869,772 (McDonnell
et al.) and U.S. Pat. No. 5,314,562 (McDonnell et al.), the
contents of which are incorporated herein by reference.
The activator compositions of the present invention are
intended to be used with a wide variety of both metallic and
non-metallic substrates, including substrates having acidic
surfaces such as wood and paper or cardboard, and plastics
substrates. A good CTV initiator (activator) should be a suf-
ficiently slow initiator to allow effective initial mixing of the
activator through the adhesive prior to polymerisation.
In the aspect of the invention using a cyclic ketone as a
co-solvent, the advantage of the activator solutions of the
invention is particularly evident on dark-coloured substrates.
The present invention will now be illustrated in greater
detail.
EXAMPLES
In the Examples, the following abbreviations and terms are
used:
DMPT = N,N-dirnethyl-p-toluidine
Heptane = n-heptane
ETP = 2-ethane thiol pyrazine
MPM = 6-methyl-2-pyridine-methanol
MPPE = 2-(3-(6-rnethyl-2-pyridyl)-
propoxy)ethanol.
s = seconds
CTV = cure through volume
mins = minutes
mm = not measured
Loctite 401 (also called 401 herein), is a grade of Loctite
ethyl cyanoacrylate-based adhesive. It is a low viscosity, fast
curing, single component ethyl cyanoacrylate adhesive (see
for example U.S. Pat. No. 4,695,615).
Loctite is a trade mark. The above Loctite product is com-
mercially available from Loctite Corporation, Rocky Hill,
Conn., USA or Loctite (Ireland) Limited, Dublin 24, Ireland.
The concentration of activator in an activator solution is
expressed as % by weight based on the amount of solvent. The
US 7,431,793 B2
concentration of cyclohexanone is expressed as % by weight
based on the total amount of solvent, the remainder being TABLE 1-c0mjnued
n-heptane. I I I I I
Post Spray tests were Carried out by applying a 10 ul drop Post spray CT‘/:t1l'HeS of pyrazine and Pyrazine deIrivativIes on CTV
f 401 dh . t b t t d th . h 5 performance. C V times were measured by spraying a 1 A) solution
0 I a eslve on 0 a Su S ra e 2111 I en Spfaylng a Osen ofthe activator in heptane using a 10 ul drop of401 adhesive on a
activator onto the drop. Full Cure Time is the time required for cardboard substrate.
the adhesive drop to cure fully.
. . . 2-Ethane Thiol .0 Immediate 5 8 1.03 1 0.3
In pre spray tests the selected activator solution is sprayed light skin
onto the substrate before application of a 10 ul drop of 401 2,3.D1me1hy1 _o 2.4 10.15 3 1_97
adhesive. On Part Time is the time interval between applica- 10 2,5-Dimethyl -0 2-4 I 10-15 20 1-97
tion of the spray and addition of the adhesive drop. “Initial” §‘iI11e1r1;y1 1 '0 11° S1‘111 1110 2'3 2'06
on part time is the time required for the activator solvent to 2 3 §_ py I0 no Skin 10 3 ZI43
evaporate leaving the substrate with a dry appearance, this Trimetliyl
was typically 20-30 secgndst Tetra methyl .0 no skin 180 4-5 2.88
15 2-methoxy .0 no skin 6 2 1.21
Pyrazines 3-methyl
2 Methyl 3(5 or .0 no skin 7 7 ~1.27
Post Spray 6) Ethoxy 35
The post spray cure speeds of a range of alkyl substituted Py111Z111e
pyrazines (1 % solution in heptane solvent) that contained one Activator P05 Skin Post CTV PWCTV
or more electron releasing groups are shown in Table 1. It is 20 (1% com) (S) (5) (minutes) pKa I o_2
evident that many of the pyrazines were more effective CTV I
agents than DMPT. In the case of pyrazines that contained D11/11’, N0 511111 14 1125 5'66
1 t 1 . 1 b ft t d. t t b th Pyrazine no skin 10 7 1.0
eIec ron re easing groups on y, su s i uen s a Iiacen o o 2I6_Dtmethy1 Immediate N840 8_10 L98
nitrogen atoms showed more optimum reactivity. 2.1x/15 1y1 2 50.130 , 1_5 2
Alkyl groups are activating by electron release and thought 25 2‘EthaH€ Thi°1 ftnmeiitate 5 3 1-03 1 0-3
also to have a counteracting and deactivating effect by steric 2I3_Dtmethyl 1 S 11 10_1 5 3 L97
hindrance of the N atom. Thus, the steric hindrance provided 2,5_Dimethy1 2_4 1045 20 197
by the tetra methyl derivative causes it to be the least reactive 2-me iyl no skin 8-10 2-3 2.06
in terms of skinning speed of the pyrazines tested in Table 1. 3'H'Pr°PY1 _
~ ~ ~ 30 2,3,5- no skin 10 3 2.43
2,3 and 2,5-dimethyl pyrazine are less reactive than 2-methyl Trims lyl
pyrazine. The electron releasing effect of the methyl groups Tetra methyl no Skin 130 4.5 2_gg
renders the aforementioned di sub stituted pyrazines more 2-me 1OXy no skin 6 2 1.21
reactive than unsubstituted pyrazine. WI 36 k_ 7 7 I 27
. . . C 1y OI HO S 111 N .
2,6-dimethyl pyrazine followed by 2-methyl pyrazine were 35 6) Ethoxy 35
the two most reactive pyrazines in terms of skinmng speed Pyrazine
that were tested. In both compounds one of the pyrazine
nitrogen atoms is unhindered and the electron releasing effect
of the methyl group(s) increased the respective reactivities Pre Spray
compared to non-substituted pyrazine. The rapid skinning of 40 The pre spray cure speed ofpyrazine and a range of Pym-
these pyrazines is reflected by their s10W CTV times With the zines that contained at least one electron releasing group is
m0St 1‘eaCtiVe 2,5'dimethY1 deriValiVe haVi11g 3 C011SideFah1Y shown in Table 2. Although the initial reactivity of 2-meth-
slower CTV time (~14 minutes) than the less reactive 2-me- oxys 3—methyl pyrazine and the longer tern} reactivity of
thyl deI‘iVatiVe (CTV 1-3 minutes). 2-methyl 3-n-propyl pyrazine were similar to that of DMPT.
Substitution of an alkyl group in dialkyl substituted pyra- 45 In all cases the pyrazines had slower CTV times than DMPT
zines by an electron withdrawing and sterically hindering over an activator on part times of up to 1 hour.
alkoxy or thio groups reduced the reactivity compared to the
dialkyl substituted pyrazine. 2-ethane thiol pyrazine (ETP) TABLE 2
was less reactive than methyl pyrazine but was more reactive I I I I I
than unsubstituted pyrazine 50 Pre s ra CTV times of razine and razine derivatives.
Activator Pre- Skin Pre-CTV
TABLE 1 (1% conc.) On Part Time (s) (minutes)
Post spray CTV times of pyrazine and Pyrazine derivatives on CTV DMPT Hi i3I N0 Skin 1'1-25
performance. CTV times were measured by spraying a 1% solution 5 minutes ’ 2-8
of the activator in heptane using a 10 ul drop of 401 adhesive on a 55 I 1I 1101” ’ 7
cardboard substrate. PYI3-Z1115 H1 13 ’ 7
2,3-Dimethyl ni ia 20 3
Conc Post Skin Post CTV Pre-CTV 30 minutes — 9
Activator (%) (s) (s) (minutes) pKa 2 0.2 1 hour — 12
6 hours — >90
DMPT 1.0 no skin 14 1-1.25 5.66 60 2,5-Dimethyl ni ia 60 20
Pyrazine 1.0 no skin 10 7 1.0 2-methyl ni ia " 2-3
2,6-Dimethyl 1.0 Immediate ~840 8-10 1.98 3-n-propyl 30 minutes 7
2,6-Dimethyl 1.0 Immediate ~900 8-10 1.98 1 hour 8
2,6-Dimethyl 0.1 5 ~900 — " 6 hours 60
2,6-Dimethyl 0.01 no skin 600 — " 2,3,5- ni ia no skin 3
2-Methyl 1.0 2 60-180 — 1.52 Trimethyl
2-Methyl 0.1 5 80 — " 65 2-methoxy ni ia " 2
2-Methyl 0.01 no skin 180 — " 3-methyl 20 minutes 4
US 7,431,793 B2
15
TABLE 2-continued
Pre s ra CTV times of razine and razine derivatives.
Activator Pre-Skin Pre-CTV
(1% conc.) On Part Time (s) (minutes)
1 hour 20
2 Methyl 3(5 or Initial 7
6) Ethoxy 16 hours 35
Pyrazine
2-Ethane Initial 5 8
Thiol
tetra methyl Initial 5 4-5
2,6-Dimethyl Initial " 8-10
Pyrazines have the important property from a health and
safety point of view that they are relatively non-toxic. Some
are actually added to foods etc. as flavour enhancers. Alkyl,
hydroxy, alkoxy and thio pyrazines are for example widely
found in food and also added to edible products as flavour
Pyridine N Oxides
Pyridine N oxide was a very slow initiator. Introduction of
electron releasing groups enhanced reactivity. The methoxy
group in the 4 position (being, in that position, an electron
releasing group) appeared to be too activating. However,
4-methyl and 2,4-dimethyl pyridine N-oxide ( i.e. compounds
substituted with electron-withdrawing group(s)) had good
reactivity (CTV 30 seconds). A desirable property exhibited
by the latter accelerator is that it cured the adhesive drop to a
clear drop. The longer term (e.g. 30 minutes) pre spray per-
formance (10 ul 401/cardboard substrate) of 4-methyl pyri-
dine N-oxide was superior to that of DMPT (compare Tables
2 and 3).
TABLE 3
10
15
20
25
30
16
-continued
0
N
O\X\OH
2- (3- (6-methyl-2-pyridyl)-propoxy) ethanol
TABLE 4
Post spray CTV Performance (401 adhesive) of 2,6 disubstituted
m
Activator Post CTV
(1%) Solvent (s) pKa
2,6 IPA >300 6. 67
Lutidine
MPM IPA 25-30 5.73
MPPE Heptane 60 6.4
pKa Values
The pKa values of the compounds used in the Examples are
given in Tables 1-4. Those of the parent compounds are given
below:
Activator Calculated pKa (10.2)
Pyridine N Oxide (parent) 0.73
Pyridine (parent) 5.32
Pyrazine (parent) 1.0
DMPT 5.66
Post and Pre spray reactivity of 1% (unless otherwise indicated) pyridine N-oxide
derivatives with 10 ul drop of 401 adhesive on a cardboard substrate.
Pyridine-N- Post Spray Pre Spray On Pre Spray
Oxide Solvent Conc. (%) (s) Part time (mins)
4-methoxy IPA 1.0 Skin, no CTV —
4-methoxy IPA 0.1 Skin, no CTV
2 ,4—dimethyl IPA 1 .0 30 —
4-methyl IPA 1 .0 30 initial 4
4-methyl IPA 1.0 — 30 minutes 4
4-methyl IPA 1.0 — 16 hours 7
2,6 Disubstituted Pyridines
50
Pyridine and 2,6 lutidine were too reactive and only caused
skinning in post spray tests. Replacement of one of the methyl
groups in 2,6 lutidine with either the slightly electron with-
drawing methanol or electron releasing propoxy ethanol
group reduced reactivity sufficiently to allow good CTV of
401 adhesive. c.f. table 4
OH
O
N
O
N
MPM
2,6 Lutidine 6-Methyl-2-Pyridine—Methanol
55
60
65
pKa
2.28
2.28
1.83
1.41
1.41
1.41
Example 1
Post Spray tests were carried out by applying a 10 ul drop
of adhesive onto a substrate and then spraying a chosen acti-
vator onto the drop. Full Cure Time is the time required for the
adhesive drop to cure fully.
In Pre Spray tests the selected activator solution is sprayed
onto the substrate before application of a 10 ul drop of adhe-
sive. On Part Time is the time interval between application of
the spray and addition of the adhesive drop.
The formulations of the invention show, or would be
expected to show, at least one of the following properties:
1. No or no substantial loss of surface activation.
2. Fast cure after pre-activation.
3. No or no substantial shortcomings in cosmetics.
4. Fast through cure after post activation.
5. No or no substantial loss of bond strengths.
US 7,431,793 B2
17 18
Activator solutions according to this invention would allow 10. A bond formed between two surfaces by the reaction
manufacturers to have long waiting periods between the steps product of claim 9.
of application of activator (surface activation) and application 11. A process to accelerate hardening of a cyanoacrylate
of adhesive (bonding parts). adhesive, steps of which comprise:
Thus the invention can confer the following benefits: 5 (a) providing a cyanoacrylate adhesive according to claim
Interruptions/breaks/hold-ups in production lines do not 1,
require repeated surface activation of the parts to be (b) providing an accelerator composition according to
adhered. claim 1, and
Parts to be bonded can be activated in advance by the (c) contacting the cyanoacrylate adhesive with the accel-
supplier or a contractor. This could be advantageous if 10 erator composition.
manufacturer does not want to equip his production lines 12. A process for the bonding of substrates or parts, char-
with activator application stages. acterised by either of the following series of steps:
Large number of parts can be pre-treated in advance and be (a) dispensing a composition from the second part of the
held in stock. system as according to claim 1 onto at least surface of the
Although the invention has been described above, many 15 substrates or parts to be joined;
modifications and equivalents thereof will be clear to those (b) optionally exposing solvent or other liquid vehicle in
persons of ordinary skill in the art and are intended to be the accelerator composition to air, optionally with heat-
covered hereby, the true spirit and scope of the invention ing and/or with the aid of a fan;
being defined by the claims. (c) optionally holding the substrate or part having the
The invention claimed is: 20 accelerator composition thereon for a retention or ship-
1. An accelerator composition adhesive system comprising ping period,
in one part a cyanoacrylate adhesive and in a second part an (d) applying a cyanoacrylate adhesive from the one part of
accelerator composition for curing cyanoacrylate adhesives the system of claim 1 to at least one substrate or part;
comprising: (e) joining the substrates or parts, optionally with manual
(a) one or more compounds selected from the group con- 25 or mechanical fixing, and
sisting of: (f) optionally subsequently dispensing the accelerator
(i) unsubstituted pyrazine; or a pyrazine derivative; said composition onto adhesive exposed from a joint gap; or
pyrazine derivative being pyrazine substituted with at (i) applying a cyanoacrylate adhesive from the one part of
least one electron-releasing group which substituent the system according to claim 1 onto at least one surface
causes a net increase in the base strength of the substi- 30 of the substrates or parts to be joined;
tuted compound as compared to the corresponding (ii) joining the substrates or parts, optionally with manual
unsubstituted compound; or mechanical fixing;
(ii) pyridine N oxides substituted with at least one electron- (iii) dispensing an accelerator composition from the sec-
releasing group; and ond part of the system as according to claim 1 onto the
(iii) 2,6 pyridines being pyridines substituted in the 2- and 35 cyanoacrylate adhesive from the one part of the system
6-positions by substituents, at least one of the substitu- according to claim 1 before or after the step of joining
ents being electron-releasing provided that both sub- the substrates or parts, and
stituents are not methyl; (iv) optionally exposing solvent or other liquid vehicle in
(b) a volatile solvent carrier for the compound; and the accelerator composition from the second part of the
(c) an organic compound containing the structural element, 40 system according to claim 1 to air, optionally with heat-
—N:C—S—S—or 5-nitro guinoline. ing and/or with the aid of a fan.
2. A system according to claim 1 wherein in a compound of 13. A bonded assembly of substrates or parts bonded by a
group (iii) at least one of the substituents is more sterically process according to claim 12.
hindering than a methyl group. 14. An article of commerce comprising a substrate or part
3. A system according to claim 1 wherein in a compound of 45 and the system according to claim 1.
group (i) the heterocycle is substituted on at least one of the 15. A process for the bonding of substrates or parts, char-
carbon atoms directly bonded to the N heteroatom. acterised by the following series of steps:
4. A system according to claim 3 wherein the heterocycle is (i) applying a cyanoacrylate adhesive from the one part of
substituted on at least two carbon atoms each carbon atom the system according to claim 1 onto at least one surface
being directly bonded to one of the N heteroatoms. 50 of the substrates or parts to be joined;
5. A system according to claim 1 wherein the electron- (ii) joining the substrates or parts, optionally with manual
releasing group(s) are selected from one or more of straight or mechanical fixing;
chain, branched chain or cyclic, optionally substituted, alkyl (iii) dispensing an accelerator composition from the sec-
groups. ond part of the system as according to claim 1 wherein
6. A system according to claim 5 wherein said electron- 55 component (b) is a solvent mixture which comprises a
releasing groups are optionally substituted methyl, ethyl, pro- volatile hydrocarbon and a cyclic ketone, onto the adhe-
pyl, butyl or pentyl. sive before or after the step of joining the substrates or
7. A system according to claim 1 wherein component (b) parts, and
the volatile organic solvent is a solvent mixture which com- (iv) optionally exposing the solvent mixture in the accel-
prises a volatile hydrocarbon and a cyclic ketone. 60 erator composition to air, optionally with heating or with
8. A system according to claim 7 wherein the volatile the aid of a fan.
hydrocarbon is an aliphatic hydrocarbon. 16. A bonded assembly formed by the process of claim 15.
9. A reaction product of the one part of the system of claim
1 and the second part of the system of claim 1. * * * * *
Coments go here:
- Log in to post comments
