Adhesive Composition

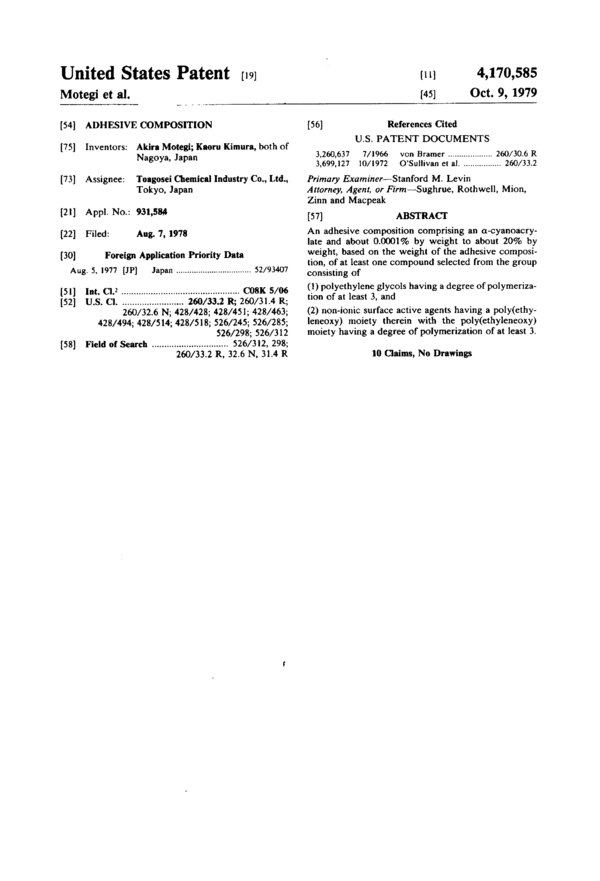

Motegi et al. United States Patent 1191 [54] ADHESIVE COMPOSITION [75] Inventors: Nagoya, Japan Toagosei Chemical Industry Co., Ltd., Tokyo. Japan [73] Assignee: [2]] Appl. No.: 931,534 [22] Filed: Aug. 7, 1978 [30] Foreign Application Priority Data Aug, 5, I977 [JP] Japan 52/93407 [51] Int. CL2 .............................................. .. C08K 5/06 [52] U.S. Cl. ....................... .. 260/33.2 R; 260/31.4 R; 260/32.6 N; 428/428; 423/451; 428/463; 428/494; 428/514; 428/518; 526/245; 526/285; 526/298; 526/312 [58] Field of Search ............................. .. 526/312, 298; 260/33.2 R, 32.6 N, 31.4 R Akira Motegi; Kaoru Kimura, both of [11] 4,170,585 [45] Oct. 9, 1979 [56] References Cited U.S. PATENT DOCUMENTS 3,260,637 7/I966 von Bramer .... .. 260/30.6 R 3,699,l27 10/I972 O‘Sullivan el al. ............... .. 260/331 Primary Examiner——Stanford M. Levin Attorney, Agent, or Firm——Sughrue, Rothwell, Mion, Zinn and Macpeak [57] ABSTRACT An adhesive composition comprising an a-cyanoacry- late and about 0.000l% by weight to about 20% by weight, based on the weight of the adhesive composi- tion, of at least one compound selected from the group consisting of (l) polyethylene glycols having a degree of polymeriza- tion of at least 3, and (2) non-ionic surface active agents having a p0ly(ethy- leneoxy) moiety therein with the poly(ethyleneoxy) moiety having a degree of polymerization of at least 3. 10 Claims, No Drawings 4,170,585 1 ADHESIVE COMPOSITION BACKGROUND OF THE INVENTION I. Field of the Invention This invention relates to an a-cyanoacrylate-type adhesive composition, and more specifically to an a- cyanoacrylate-type adhesive composition which has good storage stability and is rapidly curable with a fast setting time. 2. Description of the Prior Art An a-cyanoacrylate monomer, a principal compo- nent of an a-cyanoacrylate-type adhesive composition, has unique anionic polymerizability, and begins to poly- merize in the presence of a weak anion such as the slight amount of moisture adhering to the surface of an adher- end. Consequently, an a-cyanoacrylate-type adhesive composition can be used to bond almost all materials, except for some inert materials such as polyethylene and Teflon (trademark for polytetrafluoroethylene res- ins produced by E. I. du Pont de Nemours), firmly within several seconds to several minutes. An a- cyanoacrylate-type adhesive has therefore gained wide- spread acceptance as an instantaneous adhesive in in- dustrial, medical and household applications. The curing of an a-cyanoacrylate-type adhesive is based on the anionic polymerization of the a-cyanoa- crylate monomer. The anionic polymerization, how- ever, is inhibited when bonding a adherend having an acidic surface, such as a wooden material, a chemically treated surface (e.g., a chromate-treated surface), or a surface which has the tendency to permit the formation of an acidic oxide coating. Frequently, this causes a retardation in the setting time, and the adhesion strength obtained is not necessarily sufficient. For ex- ample, wooden materials generally used have a mois- ture content of about 10% by weight at a temperature of about 23° C. and a relative humidity of about 55%. When a wooden material is bonded with a conventional a-cyanoacrylate-type adhesive composition, a setting time of several minutes to more than ten minutes is required despite the presence of such a large amount of water in the woody tissue and the surface of the mate- rial. It has been generally considered to be difficult to bond wooden materials with a-cyanoacrylate-type ad- hesive compositions. The reason is believed to be due to the following. The surface of a wooden material is acidic with a pH of about 4 to 6 because of the sap present, and, therefore, in bonding, the anionic poly- merization of the ct-cyanoacrylate monomer is inhibited and the rate of curing is slow. Furthermore, during this time, the adhesive composition penetrates into the po- rous woody tissue, and adhesive-free portions in the adhesive layer result. Various investigations have been made to provide a method for shortening the setting time of a-cyanoacry- late-type adhesive compositions. The most common method is to use a curing agent for promoting the ani- onic polymerization of the a-cyanoacrylate monomer as a primer or a post-treating agent (for example, as disclosed in U.S. Pat. No. 3,260,637). When both the a-cyanoacrylate monomer and the curing agent are prepared as a one-package adhesive composition, the monomer polymerizes during storage. Hence, they must be stored, and the curing agent described above must be used as a primer on the job. Thus, two coating operations are required to apply both the primer and the 10 I5 20 25 30 35 40 45 50 55 65 2 adhesive, and the coating efficiency decreases drasti- cally. SUMMARY OF THE INVENTION In view of this state of art, extensive investigations have now been made on a method which can accelerate the setting of an a-cyanoacrylate-type adhesive compo- sition without adversely affecting the stability and other properties of the composition, and which can be em- ployed simply and accurately. The word led to the discovery that the object de- scribed above can be achieved by incorporating at least one compound selected from the group consisting of polyethylene glycols and nonionic surface active agents having a poly(ethyleneoxy) moiety into an a-cyanoa- crylate-type adhesive composition. Accordingly, this invention provides an adhesive composition comprising an a-cyanoacrylate and about 0.000l% by weight to about 20% by weight, based on the weight of the adhesive composition, of at least one compound selected from the group consisting of (l) polyethylene glycols having a degree of polymeri- zation of at least 3, and (2) non-ionic surface active agents having a poly- (ethyleneoxy) moiety therein, with the poly(ethy- leneoxy) moiety having a degree of polymerization of at least 3. DETAILED DESCRIPTION OF THE INVENTION The a-cyanoacrylate-type adhesive composition of this invention as described above contains an a-cyanoa- crylate monomer of the formula (1) CN / CHz=C (I) COOK’ wherein R‘ represents a straight chain or branched chain alkyl group having I to 12 carbon atoms (which may be substituted with a substituent such as a halogen atom or an alkoxy group) a straight chain or branched chain alkenyl group having 2 to 12 carbon atoms, a straight chain or branched chain alkynyl group having 2 to 12 carbon atoms, a cycloalkyl group, an aralkyl group or an aryl group. Specific examples of the groups for R‘ are a methyl group, an ethyl group, an n-propyl group, an isopropyl group, an n-butyl group, an isobutyl group, a pentyl group, a hexyl group, an allyl group, a methallyl group, a crotyl group, a propargyl group, a cyclohexyl group, a benzyl group, a phenyl group, a cresyl group, a 2-chloroethyl group, a 3-chloropropyl group, a 2-chlorobutyl group, a trifluoroethyl group, a 2-methoxyethyl group, a 3-methoxybutyl group and a 2-ethoxyethyl group. A single a-cyanoacrylate monomer or a mixture of two or more of these a-cyanoacrylate monomers can be used. Generally, the above a—cyanoacrylate monomer alone is not sufficient as an adhesive, and the compo- nents set forth below are sometimes added. (I) An anionic polymerization inhibitor (2) A radical polymerization inhibitor (3) A thickener (4) Special additives such as plasticizers and heat stabilizers (5) Perfumes, dyes, pigments, etc. 4,170,585 3 A suitable amount of the a-cyanoacrylate monomer present in the adhesive composition is about 80 to 99.9% by weight preferably 90 to 99.9% by weight, based on the total weight of the adhesive composition. An anionic polymerization inhibitor is added to the a-cyanoacrylate-type adhesive composition, e.g., in an amount of about 1 to 1000 ppm based on the total weight of the adhesive composition, to increase the stability of the adhesive composition during storage, and examples of known inhibitors are sulfur dioxide, aromatic sulfonic acids, aliphatic sulfonic acids, sul- tones, and carbon dioxide. Suitable examples of radical polymerization inhibi- tors include, for example, hydroquinone and hydroqui- none monomethyl ether. A radical polymerization in- hibitor is added, e.g., in amount of about 1 to 5000 ppm based on the total weight of the adhesive composition, for the purpose of capturing radicals which are formed by light during storage. A thickener is added to increase the viscosity of the a.-cyanoacrylate-type adhesive composition. The a- cyanoacrylate monomer generally has a low viscosity of about several centipoises, and therefore, the adhesive penetrates into porous materials such as wood and leather or adherends having a rough surface. Thus, good adhesion strengths are difficult to obtain. Various polymers can be used as thickeners, and examples in- clude poly(methyl methacrylate), methacrylate-type copolymers, acrylic rubbers, cellulose derivatives, poly- vinyl acetate and poly(a-cyanoacrylate). A suitable amount of thickener is generally about 20% by weight or less based on the total weight of the adhesive compo- sition. The plasticizers, perfumes, dyes, pigments, etc., may be added depending on use purposes in amounts which do not adversely affect the stability of the a-cyanoa- cryalte monomer. A suitable amount of the plasticizer is about 0.1 to 50% by weight, of the heat stabilizer is about 0.01 to about 5% by weight and of each of the perfume, the dye and the pigment is about 0.01 to 5% by weight, based on the total weight of the adhesive com- position. The accelerating compound also present in the a- cyanoacrylate adhesive composition of this invention to accelerate the setting of the adhesive composition, i.e., shorten the setting time of the adhesive composition, is at least one compound selected from the group consist- ing of (l) Polyethylene glycols having a degree of polymer- ization of at least 3, and (2) non-ionic surface active agents having a poly- (ethyleneoxy) moiety therein with the poly(ethy- leneoxy) moiety having a degree of polymerization of at least 3. Suitable polyethylene glycols which can be used are those having a structure of the fonnula (II) H0-(CH2cH2o),,H (11) wherein n is the degree of polymerization and n is at least 3. Usually, they are produced by polymerizing ethylene oxide. Polythylene glycols are commercially available in various molecular weights depending on the degree of polymerization (n). Suitable examples of polyethylene glycols are polyethylene glycol #200 with an average degree of polymerization of 4, polyethylene glycol #300 with an average degree of polymerization of 6, and polyethylene glycols #400, #600, #1000, l0 I5 20 25 30 35 45 50 55 65 4 #1250, #1540, #2000. #3600, #4000, #6000, #20000 with various other degrees of polymerization. The polyethylene glycol used in this invention should have a degree of polymerization of at least 3, i.e., a molecular weight of at least I50. If the polyethylene glycol has a degree of polymerization of less than 3, the effect of the polyethylene glycol in accelerating the setting of the adhesive composition is extremely small, and the adhesive composition of the present invention can not be obtained. There is no particular upper limit on the degree of polymerization of the polyethylene glycol. Preferably, the degree of polymerization of the polyethylene glycol is about 10,000 or less, more prefer- ably about 3,000 or less. Polyethylene glycols having a degree of polymerization greatly exceeding 10,000 tend to have reduced compatibility with the a-cyanoacrylate monomer, and it is difficult to use such polyethylene glycols since they do not dissolve uniformly in the ad- hesive composition. Suitable nonionic surface active agents having a poly- (ethyleneoxy) moiety in the molecule thereof which can be used in the present invention can be selected, for example, from the following compounds which are generally known. (1) Polyethylene glycol alkyl ether-type nonionic surface active agents (2) Polyethylene glycol alkyl phenyl ether-type non- ionic surface active agents (3) Polyethylene glycol fatty acid ester-type nonionic surface active agents (4) Polyethylene glycol-polypropylene glycol ether- type nonionic surface active agents (5) Polyethylene glycol sorbitan fatty acid ester-type nonionic surface active agents (6) Ethylene oxide adducts of other active hydrogen- containing compounds (7) Polyethylene glycol alkylamine type nonionic surface active agents Suitable nonionic surface active agents which are effective in this invention are those having a poly(ethy- leneoxy) moiety, -—CHzCH2-0)». in the molecule thereof. Furthermore, for the same reason as set forth above for the polyethylene glycol, the degree of poly- merization of the poly(ethyleneoxy) moiety should be at least 3. A suitable degree of polymerization (n) for the poly(ethyleneoxy) moiety is about 3 to 200, preferably 3 to l00. Specific examples of nonionic surface active agents having a poly(ethyleneoxy) moiety which can be used in this invention are listed below. However, these exam- ples are given merely for the purposes of illustration and the present invention is not to be construed as being limited to these examples. (1) Polyethylene glycol alkyl ether-type nonionic surface active agents: Polyethylene glycol lauryl ether, polyethylene glycol cetyl ether, polyethylene glycol stearyl ether, polyethylene glycol oleyl ether, etc. (2) Polyethylene glycol alkyl phenyl ether-type sur- face active agents: Polyethylene glycol octyl phenyl ether, polyethylene glycol nonyl phenyl ether, polyethylene glycol dodecyl phenyl ether, etc. (3) Polyethylene glycol fatty acid ester-type nonionic surface active agents: Polyethylene glycol monolaurate, polyethylene glycol monostearate, 4,170,585 5 polyethylene glycol monooleate, polyethylene glycol distearate, polyethylene glycol stearate (mixture of mono- and di-esters), polyethylene glycol perfluorolaurate, etc. (4) Polyethylene glycol-polypropylene glycol ether- type nonionic surface active agents: Polyethylene glycol-polypropylene glycol ether, etc. (5) Polyethylene glycol sorbitan fatty acid ester-type nonionic surface active agents: Polyethylene glycol sorbitan monolaurate, polyethylene glycol sorbitan monostearate. polyethylene glycol sorbitan monooleate, polyethylene glycol sorbitan monopalmitate, polyethylene glycol sorbitan tristearate, polyethylene glycol sorbitan trioleate. etc. (6) Ethylene oxide adducts of active hydrogen-con- taining compounds: Phenolic resin/polyethylene oxide adducts, polyacrylate/polyethylene oxide adducts, 3,6-dimethyl~4-octyne-3,6-diol/polyethylene adducts, polyethylene glycol lanolin alcohol ether, polyethylene glycol lanolin fatty acid ester, etc. (7) Polyethylene glycol alkylamine type nonionic surface active agents: Polyethylene glycol alkylamine adducts. The amount of the above accelerating compound present in the a-cyanoacrylate adhesive composition is not particularly limited as long as the setting of the adhesive composition is accelerated without impairing the storage stability of the adhesive composition. Gen- erally, a suitable amount of the accelerating compound ranges from about 0.001% by weight to about 20% by weight, preferably from 0.01% by weight to 10% by weight. Generally, when the amount of the accelerating compound is small, the effect of accelerating the setting is small, although this varies somewhat depending on the type of the accelerating compound used. When the amount of the accelerating compound exceeds about 20% by weight, there is a tendency for the accelerating compound to dissolve with difficulty, for the viscosity of the adhesive composition to increase, or for the adhe- sive composition to gel during storage. When the amount of the accelerating compound is within the range of about 0.01 to about 10% by weight, a very fast setting time balanced with good storage stability is achieved. Suitable adherends which can be bonded using the adhesive composition of this invention include not only the wooden materials and chromate-treated metallic materials as described above but also ordinary metallic materials, ceramics, plastics, and rubbers. The adhesive composition of this invention can also be employed in bonding porous materials such as leather and paper. The adhesive composition of this invention has an extremely fast setting time, and the storage stability of the adhesive composition scarcely changes. The acidifi- cation phenomenon (i.e., the phenomenon that during storage, the setting time gradually becomes slower, and finally the adhesiveness of the adhesive composition is lost although the adhesive composition is not gelled) of the adhesive composition can be markedly retarded. The following Examples and Comparative Examples are given to illustrate the present invention in more detail. In these examples, all % and ppm values are by weight. The properties indicated were measured using the following methods. oxide 10 15 20 25 30 35 45 50 55 60 65 6 (1) Setting Time Measurement The setting time was measured in accordance with the testing method for setting time set forth in Standards JAI-4 “Method for Testing a-Cyanoacrylate-Type Ad- hesive" of the Japan Association of Adhesive Industry. The adherend sample had a size of 5>< l2.7>< 38 mm, and the setting time of the adhesive composition at the grain surface (adhering area: 1.61 m3) parallel to the grain was measured. The moisture content was measured using a Kett wood moisture meter. (2) Compression Shear Adhesion Strength Compression shear adhesion strength was measured in accordance with JIS K-6852 “Method for Testing Compression Shear Adhesion Strength of Adhesives." The adhered sample had a size of l2.7>
